34460A, 34461A 6.5디지트 Truevolt 디지털 멀티미터

카테고리: 범용계측기, 디지털 멀티미터(DMM) /

A. 주요사양 - 12가지 측정 기능: DC/AC 전압, DC/AC 전류, 2/4와이어 저항, 다이오드, 연속성, 주파수, 기간, 온도, 커패시턴스 등- 기본정확도 : 0.0035% DC, 0.05% AC (34461A)0.0075% DC, 0.09% AC (34460A)- 1,000V 최대전압 입력- 10A(34661A), 3A(34660A) 최대 전류 입력- 막대 그래프, 히스토그램, 수학 및 통계가 내장된 컬러 그래픽 디스플레이- I/O: USB, LAN/LXI(옵션), GPIB(옵션)- BenchVue 지원. PC에서 디지털 멀티미터를 제어해 손쉽게 데이터를 확인하고 캡처 Key specifications 34460A 34461A Digits of resolution 6½ 6½ Basic DCV accuracy 75 ppm 35 ppm Max reading rate 300 rdgs/s 1,000 rdgs/s Memory 1,000 rdgs 1,000 rdgs Measurements 34460A 34461A DCV, ACV 100 mV to 1,000 V 100 mV to 1,000 V DCI 100 μA to 3 A 1 μA to 10 A ACI 100 μA to 3 A 100 μA to 10 A 2- and 4-wire resistance 100 Ω to 1,000 MΩ 100 Ω to 1,000 MΩ Continuity, diode Y, 5 V Y, 5 V Frequency, period 3 Hz to 300 kHz 3 Hz to 300 kHz Temperature RTD/PT100, thermistor RTD/PT100, thermistor Capacitance 1.0 nF to 100.0 μF 1.0 nF to 100.0 μF Dual line display Yes Yes Display Color, graphical Color, graphical Statistical graphics Histogram, bar chart Histogram, bar chart, trend chart Rear input terminals No Yes IO Interface 34460A 34461A USB Yes Yes LAN/LXI Core Optional Yes GPIB Optional Optional B. 옵션 & 악세서리 Description Model number Add GPIB interface, user-installable 3446GPBU Enable NISPOM and file security 3446SECU Enable LAN interface and external triggering 3446LANU Add 34138A accessory kit, includes test leads, USB cable 3446ACCU Kelvin probe set 11059A Surface-mount device probe 11060A Kelvin clip set 11062A Transit case 34131A Precision electronic test leads 34133A DC-coupled current probe 34134A High-voltage probe 34136A Test lead set 34138A Three signal wedge probe kit 34151A PT100/RTD 4-Wire Class A sensor kit 34152A PT100/RTD 4-Wire Class sensor elements 34153A Accessory pouch 34162A Input terminal block 34171B Calibration short 34172B 30-A current shunt 34330A Thermistor temperature pro E2308A Low-thermal external digital multimeter scanning kit Y1133A C. 제품 관련 자료 (제품사양서) 34460A, 34461A Digital Multimeters 다운

자세히 보기

RP7900 시리즈 재생식 전원시스템

카테고리: 범용계측기, DC 전원 공급기, 분석기 /

A. 주요사양 - 출력 : 5kW 또는 10kW (단독모델)- 간편한 병렬연결로 최대 150kW의 공급, 부하 가능- 전원공급과 부하로 사용할 수 있는 2사분면 모드로 작동- 키사이트 HEV/EV(하이브리드 전기 및 전기 차량) 전력 컨버터 테스트솔루션의 구성요소- 최대 50Ω 까지 프로그래밍 가능한 저항값으로 고전압, 고전력 배터리 에뮬레이션 가능 200/208VAC Models RP7931A 20 V, ±400 A, 5 kW, 200/208 VAC RP7932A 80 V, ±125 A, 5 kW, 200/208 VAC RP7933A 20 V, ±800 A, 10 kW, 200/208 VAC RP7935A 80 V, ±250 A, 10 kW, 200/208 VAC RP7936A 160 V, ±125 A, 10 kW, 200/208 VAC RP7951A 500 V, ±20 A, 5 kW, 200/208 VAC RP7952A 500 V, ±40 A, 10 kW, 200/208 VAC RP7953A 950 V, ±20 A, 10 kW, 200/208 VAC 400/480VAC Models RP7941A 20 V, ±400 A, 5 kW, 400/480 VAC RP7942A 80 V, ±125 A, 5 kW, 400/480 VAC RP7943A 20 V, ±800 A, 10 kW, 400/480 VAC RP7945A 80 V, ±250 A, 10 kW, 400/480 VAC RP7946A 160 V, ±125 A, 10 kW, 400/480 VAC RP7961A 500 V, ±20 A, 5 kW, 400/480 VAC RP7962A 500 V, ±40 A, 10 kW, 400/480 VAC RP7963A 950 V, ±20 A, 10 kW, 400/480 VAC B. 모델 RP7900과 함께 사용하는 SD1000A Safety Disconnect System- 15ms이내 안전분리(Safety Disconnection)- 전력 릴레이 레이팅 : 500Vdc, 60Adc- 릴레이 수명 : 100만 사이클 C. 제품 관련 자료 (제품사양서) RP7900 Series_Datasheet 다운

자세히 보기

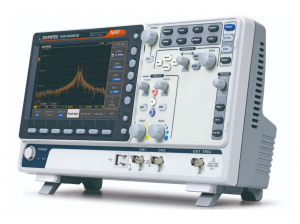

MDO-2000A 시리즈

카테고리: /

주요 특징? 300/200/100MHz bandwidth selections ;2 channels? Real time sample rate is 2GSa/s max.? Per Channel 20M memory depth and VPO waveform display technology? Waveform update rate up to 120,000 wfms/s? 8 “ WVGA TFT LCD display? Maximum 1M FFT provides higher frequency domain resolution measurements? High ,low and band pass filter functions? 29,000 segmented memories and waveform search functions? I2C/UART/CAN/LIN serial bus trigger and decoding function? Data log function is able to track signal changes up to 1000 hours? Network storage function? Mask test function? MDO-2000AG equips with a dual channel 25MHz AWG MDO-2000A is an advanced version of MDO-2000E. The selectable bandwidth range is upgraded to 300MHz. The full bandwidth ranges include 300MHz, 200MHz and 100MHz. The sampling rate has upgraded to Max. 2GSa/s and the memory depth has also been upgraded to 20M/CH. Hence, the three major specifications of oscilloscopes have been improved. The new models of the series feature 2 channels including MDO-2000A and MDO-2000AG. The entire series offers the functions of oscilloscope and spectrum analyzer. On top of that, MDO-2000AG features a dual-channel 25MHz arbitrary waveform generator. The new generation MDO-2000A series provides better sampling rate and memory depth for users to obtain more realistic signal integrity, and higher bandwidth selections meet the measurement requirements of higher frequencies.

자세히 보기

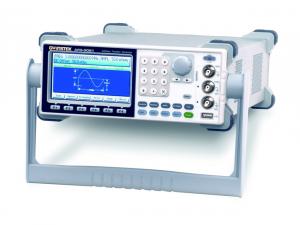

AFG-3000 시리즈

카테고리: /

 주요 특징? Wide frequency range from 1uHz to 80/50MHz? High 200MSa/s sampling rate? 16-bit Amplitude Resolution? Output from any section of 1M-point-long waveform? 4.3" high resolution LCD display/on-screen help/Impedance switch? Four ways to generate arbitrary waveform: Front Panel Operation? CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary? Waveform Editing PC Software? USB, RS-232, GPIB interface support The AFG-3000 Series is arbitrary waveform generator designed for industrial, scientific research and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users‘ diversified needs. The AFG-3000 Series also provides a high 16 bit resolution, 200MSa/s sample rate and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 Series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency.In addition, the AFG-3000 Series has switchable 50 Ohm and Hi-Z Impedances, built-in On-Screen Help for operation conveniently. Complete parameter settings and waveform can be displayed through 4.3-inch high-resolution TFT LCD. Through USB, RS-232, and GPIB, user can use dedicated PC software or IEEE488.2 commands to edit waveforms. WIDE FREQUENCY RANGE FROM 1uHZ to 80/50MHzThe AFG-3000 series arbitrary waveform/ function generator employs direct digital synthesis (DDS) technology to generate and output a variety of stable and precise waveforms. The frequency operates at up to 80MHz (AFG-3081) or 50MHz (AFG-3051), with a minimum resolution of 1uHz for the entire frequency range. The built-in standard waveforms include sine, square, triangle, ramp, pulse, noise and other types of waveforms.The Minimum 1uHz Resolution MODULATION, SWEEP and BURST FUNCTIONSThe Modulation functions, including AM, FM, FSK and PWM, are provided to cover a broad range of market requirements. A dedicated terminal for the modulating signal output is available in the front panel for modulation monitoring or other control purposes. Either an internal signal or an external signal can be selected to perform the modulation.FSK is a frequency modulation scheme in which digital information is transmitted through signal frequency variation. The BFSK (binary FSK) modulation, using two frequencies to represent data 1 and 0 respectively, is commonly applied for Call ID and Remote Metering applications.PWM is a digital modulation scheme that can be used to adjust the output power level by controlling the pulse width of the driving signal. The examples include the speed control of motor rotation and the luminance control of LED lighting instrument. With the pulse width variation of driving signal, the rotating speed of motor and the luminance of LED will change accordingly. PWM to Control & Test the Motor Speed The Sweep function supports three trigger modes of INT, EXT and manual, and two sweep modes of LOG and LIN. Each time a sweep signal is perceived, the function generator will start to sweep through the user-defined frequency range by the frequency variation of either Log curve or Linear curve.  sweep The Burst function supports two modes of Gate and N Cycle. To run burst function, the burst repetitive rate has to be set first, then the time duration of each burst has to be defined under Gate mode, or the number of the waveform cycles in each burst has to be set under N Cycle mode. Under both Gate mode and N Cycle mode, the burst waveform polarity and phase can be controlled.   HIGH 200MSa/s SAMPLING RATEThe profile of arbitrary waveform is composed of a series of data. The frequency of arbitrary waveform is derived from sampling rate divided by the number of points constructing a complete waveform, i.e. frequency = sampling rate / the number of points in a waveform. Based on the above, the higher the sampling rate, the higher the arbitrary waveform frequency can be available.A Sine waveform composed of 100 points waveform data is able to have a 2MHz frequency with 200MSa/s sampling rate, but can only have 1.25MHz frequency with 125Msa/s sampling rate and 0.5MHz frequency with 50M sampling rate. AFG-3000, possessing a sampling rate of 200Msa/s, is able to generate a waveform up to 100MHz for a simple waveform composed of 2 points of data.High Sampling Rates Achieve Higher Frequency Ranges 16-BIT AMPLITUDE RESOLUTIONThe 16 bit amplitude resolution can display smooth waveforms, while a lower bit resolution will display jagged or less smooth waveforms.For example, if 10V is divided into 10,000 equal parts, each part would have a resolution of 1mV. When using a 16 bit resolution, the smallest possible bit resolution is 0.15mV (from 10V). With 16 bit resolution, the 10,000 parts will appear to be a smooth straight line, while the bit resolution of 12 bit would be 2.4mV, greater than the 1mV needed. In this case the straight line would appear like a ladder.16 bit Allows Greater Details OUTPUT FROM ANY SECTION OF 1M-POINT-LONG WAVEFORMSThe AFG-3000 Series provides 10 sets of memory for user save and recall applications. Each set of memory is able to store a set of front panel setting and a set of 1M-point arbitrary waveform data. With 1M long memory, AFG-3000 can store more complex waveforms consisted of more data.Further more, any section of waveform within this 1M memory can be edited or output independently. This is a unique feature allowing more flexibility for user to do waveform storage and extraction.Arbitrary Editing / Output EASY OPERATION AND FLEXIBLE ARBITRARY WAVEFORM EDITINGThe AFG-3000 presents four ways to generate custom arbitrary waveforms from direct front panel operation, PC software, a CSV file loading, and GDS-2000 series oscilloscope input. Front Panel OperationEverything from waveform editing, I/O configuring, and panel setting storage and recall can be completed directly through front panel operation. Front panel operation allows users to edit arbitrary waveform, which is correspondingly updated on the screen, a feature of "What You See is What You Get".   CSV file uploadingAFG-3000 supports CSV file editing for arbitrary waveform generation. The CSV file can be created in many ways, including using EXCEL spreadsheet, PC client software, front panel editing or math computing software. The computing result of math software, Octave for example, can be saved into CSV file. Edited CSV file can be downloaded from either USB flash or PC to AFG-3000 for arbitrary waveform output.Supports CSV file  From Math Computing Software, Program and Result in CSV File Direct Waveform Reconstruction (DWR) CapabilityThe AFG-3000 can be directly connected to a GW Instek GDS-2000 Series DSO with USB cable for waveform data download. Under "DSO Link" mode of AFG-3000, the DSO will transfer the captured waveform data from its memory to AFG-3000 for creating a correspondent waveform output.  Direct Waveform Reconstruction from the GDS-Series Arbitrary Waveform Editing PC SoftwareA PC software for AFG-3000 waveform editing is supported. The software contains not only waveform drawing tools but also a wide variety of waveform editing functions, such as waveform arithmetic operations. The most commonly used waveforms, including Rayleigh, Gaussian, Normal Noise, Pseudo Ternary, Bipolar AMI, Manchester, Differential Manchester, RS-232, and NRZ etc., are available in the library for user to tailor specific waveforms as needed.A Sinc Waveform with Gaussian Noise  Digital Signal IMPEDANCE SWITCH & ON-SCREEN HELPAFG-3000 allows users to select the suitable impedance between 50 ohm and High-Z, ensuring a right impedance compatibility.The built-in On-Screen Help allows users to understand AFG-3000 operations and the definition of each function key.Impedance SwitchOn-Screen Help STANDARD COMMUNICATION INTERFACESThe AFG-3000 provides GPIB, RS-232, and USB as standard communication interfaces. AFG-3000 supports IEEE 488.2 protocol and command for users to integrate system or remotely control the instrument.   4.3" HIGH RESOLUTION LCD DISPLAYThe AFG-3000 is equipped with a 4.3" LCD screen of 480 x 272 resolutions. In addition to displaying all of the settings on the screen, the large graphic display also allows users to observe complete waveforms at a glance.

자세히 보기

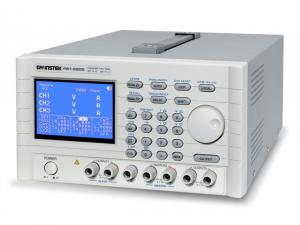

PST 시리즈

카테고리: /

 주요 특징? Digitized programmable interface? high resolution 10mV, 1mA? 192 x 128 LCD display, simultaneously? Over-voltage, over-current, over temperature protection? Intelligent fan control (changes by output power)? 100 Sets memory? Auto step running with timer? Provided auto series and parallel function? Labview driver? Standard interface: RS-232C? Optional: GPIB (IEEE-488.2)? Optional European jack type terminal The PST series are 3-channel, 96 or 158W, programmable linear DC power supplies. High resolution, maintained at 10mV, 1mA ( 3A). OVP, OCP, and OTP, protects the PST-Series and its loads from unexpected conditions. The PST Series are capable of independent, series, or parallel operation for increased flexibility. The large LCD display conveniently displays all outputs and configurations simultaneously to simplify operation. The programmable interface allowsautomatic stepping, 100 set of memory, and comprehensive timing operations. GPIB and RS232C interfaces, Labview driver,s and SCPI compatibility allow easy ATE software development and remote control. The versatile PST-Series is ideal for high resolution, multiple output, and automated operations such as production testing and rack mounting systems.

자세히 보기

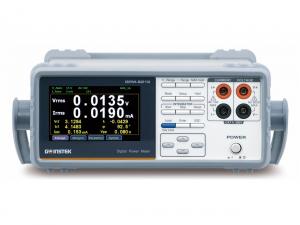

GPM-8213

카테고리: /

 주요 특징? 4” TFT LCD? Two data display modes? Standard : two major measurement items + six secondary measurement items? Simple : displaying test data of four different measurement items? Met the requirement of IEC 62301 power measurement? Voltage/ current test frequency bandwidth : DC~6kHz? Watt resolution : 1mW? Lowest current range : 5mA, resolution : 0.1uA? Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range? W-h (power vs time)/A-h (current vs time) integration function? Total harmonic distortion measurement? Front panel test terminal? Standard interface : RS-232C, USB device, LAN? Optional interface : GPIB? Optional test fixture : GPM-001 GW Instek GPM-8213 power meter is designed specifically for single-phase (1P/2W) AC power supply’s power measurements. Powerful features, including 4” TFT LCD, five-digit measurement display, 19 power measurement parameters, integral measurement function, high-accuracy voltage/current/power measurement capabilities, front/rear panel input terminals, and various communications ports, are to facilitate users with clear, convenient, and accurate power measurements. GPM-8213 provides as many as 19 power measurement parameters, including voltage (Vrms/ V+pk / V-pk), current (Irms/ I+pk / I-pk), frequency (VHz/ IHz), power (P/ P+pk / P-pk), crest factor (CFV/ CFI), apparent power (VA), reactive power (VAR), power factor (PF), phase angle (DEG), total harmonic distortion (THDV/ THDI), high-accuracy voltage/current/power measurement capabilities (reading: ±0.1%; level: ±0.1%). The advantages of TFT LCD havebeen efficiently deployed to simple mode and standard mode. Simple mode displays conventional power meter’s four measurement parameters to meet the requirement of accuracy and clarity for the test on manufacturing process. Standard mode extends the display to the maximum of 8 measurement parameters (2 major measurements + 6 monitor measurements) to satisfy the various measurement application requirements of R&D, design, and quality verification. For DUT requiring IEC 62301/EN 50564 standby power consumption test, GPM-8213 provides the optimal measurement supports, including test frequency bandwidth of DC~6kHz, the minimum current level of 5mA (resolution: 0.1uA), power measurement resolutions (1uW for minimum current and voltage levels; 1mW for maximum current and voltage levels), crest factor reaching 3 (half range reaching 6), and measurement of total harmonic distortion (at least 13th orderpower harmonic). For large voltage /large current measurement applications of general power measurement, GPM-8213 provides PT / CT rate function to collocate with external potential transformer or current transformer to meet the measurement requirements. With respect to data retrieval and storage, the standard RS-232C/ USB interfaces (virtual COM)/ LAN can be utilized to edit and retrieve programs or the optional GPIB interface (installed by manufacturer) can be selected to meet users’ automatic test system requirements. Two Display Modes  GPM-8213 provides two display modes so as to maximize users’ measurement effectiveness. Standard mode: simultaneously displays 8 measurement parameters (2 major measurements + 6 secondary measurements) and related measurement setting parameters; ideal for R&D, design, and engineering verification.Simple mode: displays four measurement parameters; ideal for production tests. Standard mode(Setting & 8 measurement) Simple mode (4 measurements) Variety of Measurement ParametersComparing with products of the same category, GPM-8213 provides more diverse measurement items and functions, including voltage, current, frequency, active power, apparent power, reactive power, power factor, crest factor, and total harmonic distortion measurement. GPM-8213 also features the integral measurement function for DUT’s power or current time. Users can set a time period to execute the transient power integration and divide the result by timeto receive DUT’s average power.        Optional Measuement CapabilitiesFor IEC 62301/EN 50564 standby power consumption test requirement, GPM-8213 can fully meet the demand by its features, including measurement frequency bandwidth of DC~6kHz, minimum current level of 5mA (resolution: 0.1uA), power measurement resolutions (1uW for minimum current and voltage levels; 1mW for maximum current and voltage levels). Beyond that, time resolution for integral measurement is one second. With respect to large power measurement, userscan utilize terminal on the rear panel to conduct 600V / 20A measurement. Users can also use external potential transformer/current transformer for measurement and collocate with PT/CT to set multiplying factor (1~9999) to change readings to the original input voltage or current values without the trouble of additional calculation. Low current range & High resolutionPT / CT Connection  Various Standard InterfacesThe various practical interfaces, RS-232 / USB device/ LAN, are equipped as standard making control convenient and flexible for remote control and measurement result collection. Also, GPIB is available as optional.

자세히 보기

(단종)U1600 시리즈 핸드형 오실로스코프

카테고리: 범용계측기, 오실로스코프 /

A. 주요사양 CATIII 600 V 채널간 절연으로 안전하게 고전력 신호 분석 수행 최대 2GSa/s 샘플링 속도, 최대 2Mpts 메모리 기록으로 파악하기 어려운 세부사항도 명확하게 표시 세 가지 보기 모드 디스플레이(실내, 실외, 야간) USB 2.0 최대 속도 IO 인터페이스 10개 언어가 지원되는 사용자 인터페이스 듀얼 윈도우 줌 기능으로 문제 영역을 쉽게 식별 및 상세분석 DMM 디스플레이에 10,000의 분해능 제품 대역폭 최대 샘플링 속도 채널 메모리 U1610A 100 MHz 1 GSa/s 2 Max. 120 kpts U1620A 200 MHz 2 GSa/s 2 Max. 2 Mpts B. 옵션&악세서리 권장 악세서리(U1610A/U1620A용) Description Model number Test lead kit, extended U1161A Alligator clip U1162A Grabbers, SMT U1163A Test probes, fine tip U1164A Test lead kit U1168B Test Probe Leads (with 19-mm tips and 4-mm tips) U1169A Probe tip, 1000v CAT Ii, 600v CAT Iii U1554A Scope probe - X1 CAT III 300V U1560A Scope probe - X10 CAT III 600V U1561A Scope probe - X100 CAT III 600V U1562A Li polymer battery pack U1572A Desktop charger and Li polymer battery U1573A AC/DC adaptor U1574A Desktop charger U1575A USB cable U1577A DMM terminal test lead set U1580A AC current clamp U1583B Temperature module U1586B Temperature module U1591A   C. 제품 관련 자료 (제품사양서) U16x0A Handheld Digital Oscilloscopes 다운

자세히 보기

E3600 시리즈 DC 전원 공급기

카테고리: 범용계측기, DC 전원 공급기, 분석기 /

A. 주요사양 - 30W ~ 200W 출력- 내장된 측정을 통해 케이블링을 단순화- 전면판 제어로 작업을 간소화- 낮은 노이즈 파워 및 뛰어난 레귤레이션- 전후면 출력 단자- 낮은 전압 설정에서 더 많은 전류를 제공하는 이중 범위 출력 모델 전력 (W) 최대V (V) 최대I (A) 출력수 범위수 리플 및 노이즈 mVp-p 프로그램 또는 미터 분해능 컴퓨터 인터페이스 E3620A 50 25V / 25V 1A / 1A 2 1 1.5 10 없음 E3630A 35 6V / +20V / -20V 2.5A / 0.5A / 0.5A 3 1 1.5 10 없음 E3631A 80 6V / +25V / -25V 5 A / 1 A / 1 A 3 1 2 1.5 GPIB E3632A 120 15V / 30V 7A / 4A 1 2 2 1 E3633A 200 8V / 20V 20A/ 10A 1 2 3 1 E3634A 200 25V / 50V 7A / 4A 1 2 3 3 E3640A 30 8V / 20V 3A / 1.5A 1 2 5 5 E3641A 30 35V/ 60V 0.8A / 0.5A 1 2 8 5 E3642A 50 8V / 20V 5A / 2.5A 1 2 5 5 E3643A 50 35V / 60V 1.4A / 0.8A 1 2 8 5 E3644A 80 8V / 20V 8A / 4A 1 2 5 5 E3645A 80 35V / 60V 2.2A / 1.3A 1 2 8 5 E3646A 60 8V / 20V 3A / 1.5A 2 2 5 5 E3647A 60 35V / 60V 0.8A / 0.5A 2 2 8 5 E3648A 100 8V / 20V 5A / 2.5A 2 2 5 5 E3649A 100 35V / 60V 1.4A / 0.8A 2 2 8 5 B. 제품 관련 자료 (제품사양서) E363xA Series Programmable DC Power Supplies 다운 (제품사양서) E364xA Programmable DC Power Supplies 다운 (제품사양서) E3620A,E3630A Non-programmable DC Power Supplies 다운

자세히 보기

34470A 7.5디지트, 34465A 6.5디지트 고성능 Truevolt 디지털 멀티미터

카테고리: 범용계측기, 디지털 멀티미터(DMM) /

A. 주요사양 - 16ppm DC 정확도의 7.5디지트 분해능 (Model : 34470A)- 30ppm DC 정확도의 6.5디지트 분해능 (Model : 34465A)- 포함된 측정 모드: 연속, 데이터 로깅 및 디지타이징- 초당 최대 50,000회 판독 속도- USB 및 LAN 인터페이스- GPIB 옵션 Key specifications 34465A 34470A Digits of resolution 6½ 7½ Basic DCV accuracy 30 ppm 16 ppm Max reading rate 5,000 rdgs/s std 50,000 rdgs/s opt 5,000 rdgs/s std 50,000 rdgs/s opt Memory 50,000 rdgs std 2 million rdgs opt 50,000 rdgs std 2 million rdgs opt Measurements 34465A 34470A DCV, ACV 100 mV to 1,000 V 100 mV to 1,000 V DCI 1 μA to 10 A 1 μA to 10 A ACI 100 μA to 10 A 100 μA to 10 A 2- and 4-wire resistance 100 Ω to 1,000 MΩ 100 Ω to 1,000 MΩ Continuity, diode Y, 5 V Y, 5 V Frequency, period 3 Hz to 300 kHz 3 Hz to 300 kHz Temperature RTD/PT100, thermistor, thermocouples RTD/PT100, thermistor, thermocouples Capacitance 1.0 nF to 100.0 μF 1.0 nF to 100.0 μF Dual line display Yes Yes Display Color, graphical Color, graphical Statistical graphics Histogram, bar chart, trend chart Histogram, bar chart, trend chart Rear input terminals Yes Yes IO Interface 34465A 34470A USB Yes Yes LAN/LXI Core Yes Yes GPIB Optional Optional B. 옵션 & 악세서리 Description Model number Add GPIB interface, user-installable 3446GPBU Enable NISPOM and file security 3446SECU Enable high-speed digitizing and advanced triggering 3446DIGU Enable 2 million readings memory 3446MEMU Kelvin probe set 11059A Surface-mount device probe 11060A Kelvin clip set 11062A Transit case 34131A Precision electronic test leads 34133A DC-coupled current probe 34134A High-voltage probe 34136A Test lead set 34138A Three signal wedge probe kit 34151A PT100/RTD 4-Wire Class A sensor kit 34152A PT100/RTD 4-Wire Class sensor elements 34153A Accessory pouch 34162A Input terminal block 34171B Calibration short 34172B 30-A current shunt 34330A Thermistor temperature pro E2308A Low-thermal external digital multimeter scanning kit Y1133A C. 제품 관련 자료 (제품사양서) 34465A, 34470A Digital Multimeters 다운

자세히 보기

E4980AL, E4980A 정밀 LCR 미터

카테고리: 범용계측기, LCR Meter 및 Impedance 분석기 /

A. 주요사양 - E4980AL: 낮은 임피던스와 높은 임피던스 모두에서 극히 낮은 노이즈: 0.05% 기본 임피던스 정확도: 단선/단락/부하 보상: 20 Hz ~ 300 kHz/500 kHz/1 MHz/2 MHz 테스트 주파수(4디지트 분해능)- E4980A: 20Hz ~ 2MHz, 모든 범위에서 4디지트 분해능: 로우/하이 임피던스에서 우수한 측정 반복성을 지원하는 0.05% 기본 정확도: 내장 40V DC 바이어스 Frequency range Model number and option 20 Hz to 2 MHz E4980A 20 Hz to 1 MHz E4980AL-102 20 Hz to 500 kHz E4980AL-052 20 Hz to 300 kHz E4980AL-032 B. 제품 관련 자료 (선택가이드) Fixture 다운 (제품사양서) E4980A,AL Precision LCR Meter 다운
