차폐측정 Solution

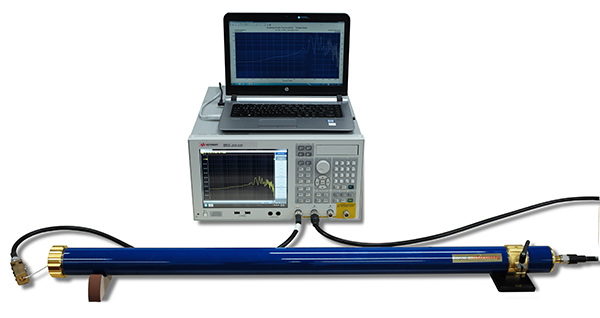

​THE MEASURING SYSTEM CoMeT



 The CoMeT system measures in accordance to the proven and international standardized triaxial test method.

The test method is not sensitive to external electromagnetic interference and fast and well reproducible. The measuring range is form DC to 12(18) GHz. There is no emission of electromagnetic interference. Transfer impedance and Screening attenuation of communication cables and cable assemblies can be measured with one test set-up. By the triaxial cell, special attention is paid to the shielding effectiveness of HV-cables for electric vehicles.



 With the different types CoMeT 40, CoMeT 90, CoMeT K and the different sizes of Triaxial cells, a family of products for the measurement of EMC performance of almost all components is available.



 STANDARDIZED TEST PROCEDURE TO MEASURE TRANSFER IMPEDANCE, SCREENING

ATTENUATION AND COUPLING ATTENUATION ACCORDING TO : IEC 621534-1, IEC 621534-3, IEC 621534-4, IEC 621534-7, IEC 621534-9, IEC 621534-10, IEC 621534-14, IEC 621534-16, EN 50289-1-6
