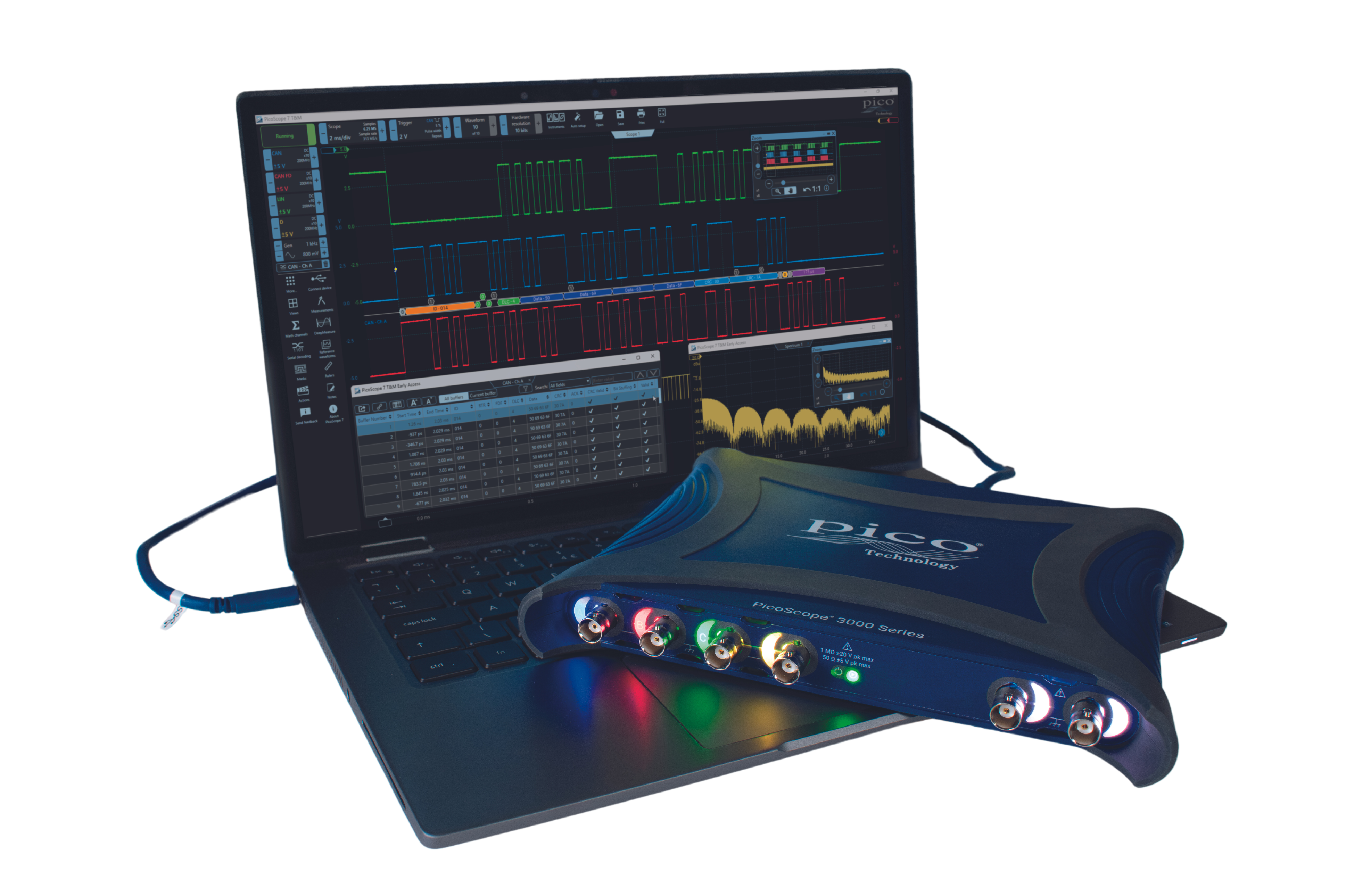

PicoScope 3000E Series
PicoScope 3000E Series
350 MHz or 500 MHz with 5 GS/s
10-bit resolution(14 bits using enhanced resolution)
2 GS ultra-deep capture memory
Function/arbitrary waveform generator included
40 serial protocol decoders included as standard

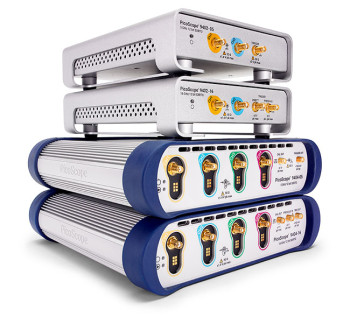

PicoScope 9400 Series
PicoScope 9400 Series
SXRTO (sampler-extended real-time oscilloscope)
Pulse, eye and mask testing down to 45 ps and up to 11 Gb/s
12-bit 500 MS/s ADCs
Intuitive and configurable touch-compatible Windows user interface
Comprehensive built-in measurements, zooms, data masks and histograms
±800 mV full-scale input range into 50 Ω
10 mV/div to 0.25 V/div digital gain ranges
Up to 250 kS trace length, shared between channels
Optional clock recovery trigger on all models ? 5 or 8 Gb/s
Recovered clock and data outputs

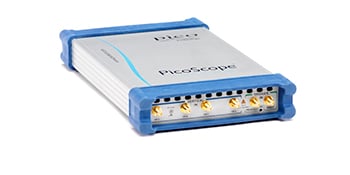

PicoScope 9300 Series
PicoScope 9300 Series
15 TS/s (64 fs) sequential sampling, display resolution to 640 TS/s (1.5 fs)
Up to 15 GHz prescaled, 2.5 GHz direct trigger, and 11.3 Gb/s clock recovery
Industry-leading 16-bit 1 MS/s ADC and 60 dB dynamic range
Eye and mask testing to 20 Gb/s with up to 223?1 pattern lock
Intuitive, touch-compatible Windows user interface
Comprehensive built-in measurements, histogramming, and editable data mask library
Integrated, differential, deskewable TDR/TDT step generator

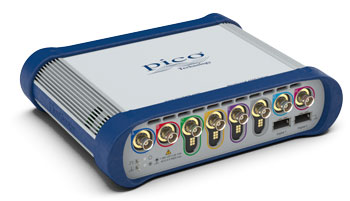

PicoScope 6000E Series
PicoScope 6000E Series
Up to 3 GHz bandwidth
A choice of 4 (up to 3 GHz) or 8 (up to 500 MHz) analog channels
200 ms capture time at 5 GS/s
Up to 4 GS capture memory
300 000 waveforms per second update rate
38 serial protocol decoder/analyzers included
High-resolution time-stamping of waveforms
8-bit to 12-bit FlexRes? ADC
Supports up to 16 digital MSO channels
Up to 10 GS/s with the PicoScope 6428E-D
50 MHz 200 MS/s 14-bit AWG

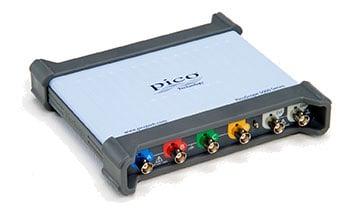

PicoScope 5000D Series
PicoScope 5000D Series
FlexRes 8 to 16-bit hardware resolution
Up to 200 MHz analog bandwidth
1 GS/s sampling at 8-bit resolution
62.5 MS/s sampling at 16-bit resolution
Up to 512 MS capture memory
16 digital channels on MSO models
130 000 waveforms per second
Built-in arbitrary waveform generator
30 serial decoding protocols as standard
Up to 200 MHz spectrum analyzer

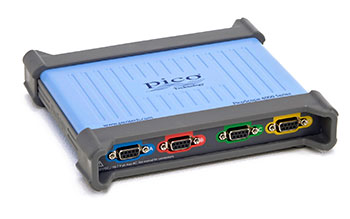

PicoScope 4444
PicoScope 4444
High-resolution differential USB oscilloscope
4 fully differential high-impedance inputs
Rejects common-mode noise
Low-voltage probe for millivolts to 50 V
1000 V CAT III voltage and current probes for mains measurement applications
Flexible 12 and 14-bit resolution
20 MHz bandwidth

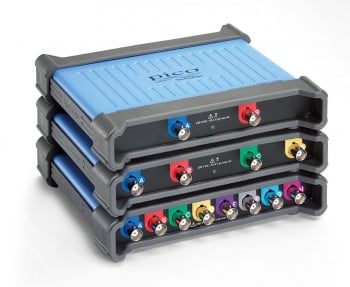

PicoScope 4000A Series
PicoScope 4000A Series
2, 4 or 8 channels
20 MHz bandwidth
12-bit resolution
1% DC accuracy
±10 mV to ±50 V input ranges
10 000 segment waveform buffer
Up to 70 dB SFDR

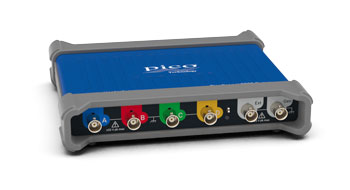

PicoScope 3000 Series
PicoScope 3000 Series
200 MHz analog bandwidth
1 GS/s real-time sampling
512 MS buffer memory
100,000 waveforms per second
16 channel logic analyzer (MSO models)
Decode over 30 serial protocols as standard
Arbitrary waveform generator

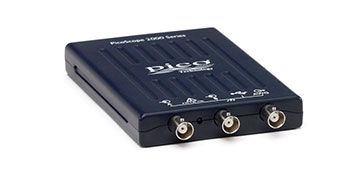

PicoScope 2000 Series
PicoScope 2000 Series
2 channel, 4 channel and MSO models
6 instruments in one
Ultra-compact design
Up to 100 MHz bandwidth
Decode over 30 serial protocols as standard
USB connected and powerd
Windows, Linux and Mac software
