(주)가이던트

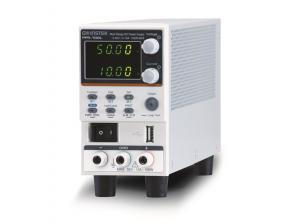

PRP 시리즈

카테고리: /

 주요 특징? Voltage Rating: 20V? CV/CC Priority; Particularly Suitable for the Battery and LED Industry? Adjustable Slew Rate? Series Operation: Up to 2 units? Parallel Operation: Up to 3 units? High Efficiency and High Power Density? 1/6 Rack Mount Size Design (EIA/JIS Standard)? Standard Interface: RS-485 The PRP-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 400W. This series of products include two models with the combination of 20V rated voltages and 200W, 400W maximum output powers. As the PRP-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PRP units for higher voltage or higher current output provides a broadcoverage of applications. The CV/CC priority selection of the PRP-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply.With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode. Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-onstage,the PRP-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. The adjustable slew rate of the PRP-Series allows user to set for either output voltage or output current a specific rise time at the low to high level transition, and a specific fall time at the high to low level transition. This facilitates the characteristic verification of a DUT during voltage or current level changes with controllable slew rates. The manufacturing tests of lighting device or large capacitor during power output-on are mostly associatedwith the occurrence of high surge current, which can greatly reduce the life time of the DUT. To prevent inrush current from damaging current-intensive devices, a smooth and slow voltage transition during power on-off can significantly reduce the spike current and protect the device from high current damage. The OVP and OCP are provided with the PRP-Series. Both OVP and OCP levels can be selected, with default level set at 110%, of the rated voltage/current of the power supply. When any of the protection level is tripped, the power output will be switched off to protect the DUT. The PRP-Series provides RS-232/RS-485 interfaces as standard. An analog control/monitoring connector is also available on the rear panel for external control of power On/Offand external monitoring of power output Voltage and Current.  PRP-Series Reasonably Priced DC Power SupplyModel NameVoltageCurrentPowerPRP 20-100 ~ 20V0 ~ 10A200WPRP 20-200 ~ 20V0 ~ 20A400W

자세히 보기

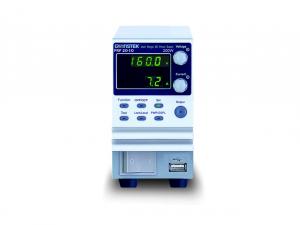

PFR 시리즈

카테고리: /

 주요 특징? Constant Power Output for 5 Times Multi-range(V&I) Operation? Natural Convection Cooling Design (Fanless Structure)? Preset Memory Function? Output ON/OFF Delay Function? CV, CC Priority Mode? Adjustable Slew Rate For Voltage and Current? Bleeder Circuit Control? Protections: OVP, OCP, AC FAIL and OTP? Support Front and Rear Panel Output? Built-in USB and RS-232/485 Interface Optional LAN+GPIB? Web Server Monitoring and Control? External Analog Control and Monitor Function? Remote Sensing Function The PFR-100 series, a small and high-performance programmable D.C. power supply, adopts natural convection design to dissipate heat. The fanless structure allows users to focus on their experiments and tests in a quiet environment. Fanless power supply will not suck in dust and foreign objects, therefore, PFR-100 series has a longer life cycle compared with that of power supplies with fan. The PFR-100 series is a power supply with a five-fold rated power that allows users to self-define voltage and current under rated power conditions so as to satisfy them with wider voltage and current operational ranges. PFR-100 series, with rated 100W, provides two models: PFR-100L- maximum output voltage of 50V (at 2A) or maximum output current of 10A (at 10V); PFR-100M maximum output voltage of 250V (at 0.4A) or maximum output current of 2A (at 50V). The PFR-100 series provides front and rear panel output terminals. The front panel output terminal helps users shorten test lead replacement time while conducting adjustment on front panel‘s function keys. The rear panel output terminal facilitates an easy wiring operation for rackmount assembly. 3U height, 70mm width and 2.5KG in weight have greatly elevated PFR-100 series portability. Furthermore, the multi-drop mode allows users to control up to 31PFR-100 series without using switch/Hub that help users save the equipment cost.

자세히 보기

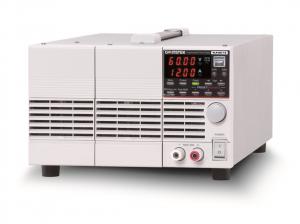

PLR 시리즈

카테고리: /

 주요 특징? Output Voltage Rating：20V / 36V / 60V? Output Power：360W / 720W? Low Ripple and Noise (0.5mVrms/ 10mArms)? Fast transition recovery time(100us)? Maximum 2 units in series connections or 3 units in parallel connections? Select the setting digits for voltage and current(coarse/ fine volume control)? Panel Lock Function? 3 set of preset function? Output off timer function(Range:1 min to 1000 hours & 59mins)? CC priority function(prevent overshoot & inrush current)? Sequence function of PC editing(Max.: 1000 steps/ Min. step period: 50ms)? Protection: OVP, UVP, OCP, remote sensing(Terminal open)? External Analog Control Function? PC Remote Interface (Standard)：RS-232; (Optional) ： GPIB / USB / LAN? CE Compliance GW Instek launches the new generation PLR series programmable switching D.C. power supply. The single power output ranges are 360W and 720W. The series comprises 6 models and the voltage ranges are 20V, 36V and 60V.  The PLR series is a hybrid circuit design which incorporates front stage switching and rear stage linear architectures. The unique advantages of this design benefit from the combination of both switching and linear structures. The frontstage switching structure can effectively reduce size and weight, and the rear stage linear structure can maintain lower ripple voltage, lower ripple current, and faster transient response. There are 6 models of the PLR series. Model number, output voltage, output current and output power are as follows:Model numberPLR 20-18PLR 20-36PLR 36-10PLR 36-20PLR 60-6PLR 60-12Output channel111111Output voltage0~20V0~20V0~36V0~36V0~60V60VOutput current0~18A0~36A0~10A0~20A0~6A12A Output power360W720W360W720W360W720W More detail, please follow the PLR-Series Brochure.

자세히 보기

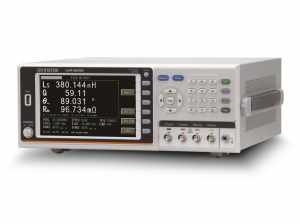

LCR-8200 시리즈

카테고리: /

 주요 특징? Wide Test Frequency 10Hz ~ 30MHz/20MHz/10MHz/5MHz? 7” LCD color Display? 0.08% Basic Accuracy? Displaying Four Measurement results simultaneously from 17 selectable measurement parameters freely? 15 steps List Measurement? Two Curves Sweep Mode? Internal DC Bias Voltage ±12V? USB Storage available? ALC function available? Standard Interfaces : RS-232C, USB host/device, LAN, GPIB and Handler? Universal power input GW Instek launches a new series of high-frequency LCR meter ~ LCR-8200, which has four models and the maximum test frequency is up to 30MHz. The entire series adopts 7-inch color display and features a high measurement accuracy (0.08%). The measurement results can be presented numerically or graphically according to the selected measurement mode, allowing users to optimally interpret the characteristics of the DUT. At the same time, a full range of standard interfaces such as USB device / RS-232C / Handler and GPIB allow users to control the instrument by the most familiar interface without worrying about additional hardware investment costs. Furthermore, the series also provides USB storage function when operating in the graphics mode. The measured characteristic curves and values of the DUT are saved for subsequent analysis. The wide variety of features of the LCR-8200 can help users easily respond to the test requirements of passive components in R&D, engineering, and production.

자세히 보기

PHX 시리즈

카테고리: /

 주요 특징? 정격 전압 : 30V/60V/500V/1000V? 정격 전류 : 6A~400A? 정격 전력 : 6kW/12kW? CV/CC 우선 순위 선택 기능? 슬루율 조정 기능 : 전압/전류 상승/하강? 프리셋 메모리 : 3세트? 직렬 연결 : 최대 2대 (30V/60V/500V 모델)? 병렬 연결 : 최대 10대 (최대 120kW 용량 확장)? 19” 랙 마운트 크기 설계? OVP/OCP/OTP 보호 기능? 통신 인터페이스 : RS-232C, RS-485, 아날로그 제어 I/F? PC 1대 최대 31대 제어 가능

자세히 보기

LCR-6000 시리즈

카테고리: /

 주요 특징? 3.5” color LCD? 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)? Consecutive test frequency? Basic accuracy : 0.05%? Measuring speed up to 25ms (max.)? Full frequency range or spot OPEN/SHORT? 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)? DCR measurement and internal D.C. bias voltage (±2.5V)? PASS/FAIL judgment? Auto Level Control (ALC) function? BIN function provides 9BIN and 1AUX, totally 10 BIN? 10 steps listed tests to select different frequency, voltage and current criteria? Standard interface : RS-232C, Handler and USB storage? Compact size, ideal for automatic equipment (2U,1/2 RACK) GW Instek introduces the brand new high precision LCR meter─LCR-6000 series, which, with five models, has a test frequency range extending from 2kHz/20kHz/100kHz/200kHz/300kHz (maximum) and with 0.05% basic accuracy. The compact size design, 2U height and 1/2 rack, is one of the practical features of the series which is the optimum space saver suitable for either bench top or system rack. The compacted LCR-6000 series with abundant features is absolutelythe excellent tool for R&D, production test, IQC, etc. on implementing each test stages for passive components. The LCR-6000 series provides rich functionalities with the compact size. First of all, the entire series adopts 3.5-inch color LCD and features opulent display parameters. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters. In other words, there are four parameters, primary/secondary and two monitoring, simultaneously shown on the screen that tremendously enhancesthe measurement efficiency. The enlarge display mode not only emphasizes the measurement results, but also provides PASS/FAIL judgment to facilitate a rapid and convenient test result. Convenience is one of the unique features. The LCR-6000 series comes equipped with two zero methods, which are full frequency range and spot. Users, without turning off the power and changing test fixture, can freely change frequency within the provided frequency range to conduct measurements. By so doing, tremendous time can be saved from repeatedly executing zero operation. Additionally, frequency range of the series is consecutive that allows usersto input precise frequency value to conduct the most genuine test on components. The LCR-6000 series also features diverse ancillary measurements to meet the measurement requirements of different materials. For instance, the series provides the automatic level control (ALC) function to satisfy the test voltage requirement of MLCC. For inductive component measurements, the series provides the adjustable test current function and the D.C. resistance measurement function. The optional external bias current adapter (±2.5A) is tosatisfy the measurement requirements. With respect to the D.C. bias voltage test for capacitive components requirements, the series allows users to conduct verification measurement on materials by its internal ±2.5V adjustable voltage or via an optional external bias voltage adapter (±45V). Furthermore, 10 steps of listed test functionalities allow users to set testing parameters (either by frequency, or voltage, or current) for each step based on users’ requirements in order to observe the trendof DUT characteristics. The LCR-6000 series has 10 memory sets defined by panel setting criteria to facilitate users in selecting test criteria and saving time in repeated settings. 10,000 measurement result storage capability can easily record measurement results instantaneously. The USB host allows easy access to recorded results without connecting the series to the PC. The USB host also allows USB to retrieve and save screen so as to assist users in compiling setting guidelines. For the external control, the LCR-6000 series provides handler interface and collocates with its measurement sorting function (9BIN, AUX: 1BIN) to facilitate the connection with sorting machine so as to sort out the materials. For remote control and measurement result retrieval requirements, the LCR-6000 series provides RS-232Cto assist setting control or measurement result retrieval via the PC commands. Additionally, the free PC software gives users aninstant tool to store measurement results that saves time in developing programs. The brand new compacted LCR-6000 series can effectively improve the limitation of space. Diverse measurement functionalities and display methods are making the series the high CP ratio choice in meeting the requirements of R&D, component assessment for engineering departments, category sorting requirements for component production, and IQC for verification on component specifications. Consecutive frequency and Convenient zero function    The LCR-6000 series, within the provided frequency range, features consecutive and adjustable frequency capability which allows users to conduct measurement and analysis on components with the most genuine frequency requirements. For OPEN/SHORT fixture compensation function, the LCR-6000 series is equipped with full frequency range zero and spot zero selections. After executing full frequency range zero, users, under the conditions of not turning off thepower and not changing test fixture, can freely change test frequency for the LCR-6000 series to execute component measurements that tremendously saves time in repeatedly zeroing test fixture after changing frequency.Consecutive and adjustable frequencyFreely input frequency within provided frequency rangeSelectable fixture zeroing methodsFull frequency range zero or spot zero Rich and diverse information display     The measurement result display of the LCR-6000 series not only reveals primary and secondary measurement parameters but also includes two monitoring parameters. Therefore, four DUT related parameters can be simultaneously shown on the display screen to save time if repeated measurements are required. With respect to display screen, the LCR-6000 series features diverse display to meet users’ observation requirements. For instance, MEAS display shows settingparameters and measurement results at the same time; ENLARGE display focuses on measurement results and PASS/FAIL judgment is available, which is conducive to assist engineers to swiftly obtain the validity of measurement results.MEAS displayParameter setting and four measurement parametersENLARGE displayEnlarge measurement results and include PASS/FAIL judgment 10 points listed tests and PC software     The LCR-6000 series provides the 10 points listed test function, which allows users to define a set of DUT measurement parameters (such as Cs- Rs) and to set 10 test criteria of category (either by frequency or by voltage or by current) but different values to conduct measurements. Through this function, users can rapidly and clearly obtain DUT’s characteristic variation trend to determine the adaptability of DUT’s practical applications. The measurementresults can be recorded directly in the internal memory and be transferred to the PC through USB. The LCR-6000 series also provides free PC software (maximum 1,000 points listed tests) in order to satisfy users’ analytical requirements on delicate variation.Listed tests Variation criteria based upon frequency or voltage/current  On software ─ characteristic curveProvide more delicate characteristic variation trend Diverse ancillary measurement functions    To satisfy the diverse measurement application requirements for different components and materials, the LCR-6000 series collocates with many auxiliary measurement functions. For capacitor measurement, Automatic Level Control (ALC) is mainly for component which requires a constant or rated test voltage such as multi-layer ceramic capacitor (MLCC). An internal D.C. bias voltage (±2.5V, internal) is allowing simulating A.C. and D.C. coexistence tolearn capacitance variation. For inductor measurement, the D.C. resistance measurement function is to validate D.C. resistance characteristics. Additional, the LCZ function is to quickly identify components ’characteristics. When the function is activated, the LCR-6000 series will automatically determine DUTs’ characteristics and reveal the optimum parameters to show the measurement results.Automatic level control  08Ideal for measuring components with voltage requirements    Internal bias (±2.5V adjustable)Ideal for capacitive components’ characteristic testsD.C. resistance measurement Ideal for inductive components’ D.C. characteristics verification  Standard interface    For interface connectivity, the LCR-6000 series comes equipped with handler interface and RS-232C interface. Handler outputs 10 BIN (9BIN, AUX: 1BIN) sorting results that is best for external connection control, for instance, connecting to a sorting machine to conduct components’ sorting operation. RS-232C is suitable for remote control and measurement results retrieval. The PC gives commands to control settings or to read measurement results so as toachieve the requirements of verifying automotive applications.

자세히 보기

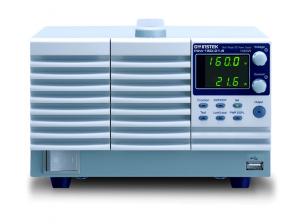

PSW 시리즈

카테고리: /

 주요 특징? Voltage Rating: 30V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W? Constant Power Output for Multiple Range (V&I) Operation? CV/CC Priority; Particularly Suitable for the Battery and LED Industry? Adjustable Slew Rate? Series Operation: Up to 2 units (30V, 80V, 160V models only)? Parallel Operation: Up to 3 units? High Efficiency and High Power Density? 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W? Standard Interface: LAN,USB,Analog Control Interface? Optional Interface: GPIB-USB Adaptor, RS232-USB Cable? LabView Driver The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include fifteen models with the combination of 30V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in seriesfor maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements. The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply.With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode. Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-onstage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. The adjustable slew rate of the PSW-Series allows user to set for either output voltage or output current a specific rise time at the low to high level transition, and a specific fall time at the high to low level transition. This facilitates the characteristic verification of a DUT during voltage or current level changes with controllable slew rates. The manufacturing tests of lighting device or large capacitor during power output-on are mostly associatedwith the occurrence of high surge current, which can greatly reduce the life time of the DUT. To prevent inrush current from damaging current-intensive devices, a smooth and slow voltage transition during power on-off can significantly reduce the spike current and protect the device from high current damage. The OVP and OCP are provided with the PSW-Series. Both OVP and OCP levels can be selected, with default level set at 110%, of the rated voltage/current of the power supply. When any of the protection level is tripped, the power output will be switched off to protect the DUT. The PSW-Series provides USB Host/Device and LAN interfaces as standard and GPIB-USB adaptor, RS232-USB as optional. The LabView driver and the Data Logging PC software are supportedon all the available interfaces. An analog control/monitoring connector is also available on the rear panel for external control of power On/Off and external monitoring of power output Voltage and Current. More information, please following the Brochure. PSW-Series Multi-Range DC Power SupplyModel NameTypeVoltageCurrentPowerPSW 30-36I0 ~ 30V0 ~ 36A360WPSW 30-72II0 ~ 30V0 ~ 72A720WPSW 30-108III0 ~ 30V0 ~ 108A1080WPSW 80-13.5I0 ~ 80V0 ~ 13.5A360WPSW 80-27II0 ~ 80V0 ~ 27A720WPSW 80-40.5III0 ~ 80V0 ~ 40.5A1080WPSW 160-7.2I0 ~ 160V0 ~ 7.2A360WPSW 160-14.4II0 ~ 160V0 ~ 14.4A720WPSW 160-21.6III0 ~ 160V0 ~ 21.6A1080WPSW 250-4.5I0 ~ 250V0 ~ 4.5A360WPSW 250-9II0 ~ 250V0 ~ 9A720WPSW 250-13.5III0 ~ 250V0 ~ 13.5A1080WPSW 800-1.44I0 ~ 800V0 ~ 1.44A360WPSW 800-2.88II0 ~ 800V0 ~ 2.88A720WPSW 800-4.32III0 ~ 800V0 ~ 4.32A1080W

자세히 보기

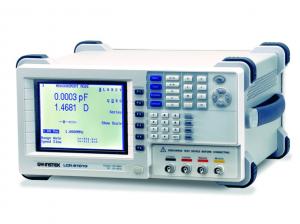

LCR-8000G 시리즈

카테고리: /

 주요 특징? Wide Test Frequency 20Hz ~ 10/5/1MHz? 0.1% Basic Accuracy & 6 Digits Measurement Resolution? Large LCD Display with Intuitive Interface? Full Measuring Functions with DUT V/I Monitor? PASS/FAIL Function ( abs, % or delta) with Judgment Alarm? DC Resistance Measurement? Multiple Step Mode? Standard RS-232C/GPIB Interface? Optional DC Bias box The LCR-8000G Series LCR meter, with test frequency up to 10MHz, provides accuracy, versatility and high resolution for a wide range of component measurements, even including DC resistance measurement and Voltage/Current monitoring. The Multi-Step function allows on-screen programming of customized measurement sequence with Pass/Fail indication. Each program includes 30 test steps and each test step can be set with selected parameters and test limits.Under Multi-Step operation, a tedious work routine can be done step by step automatically just at a press of a button. With Graph Mode, LCR-8110G, LCR-8105G and LCR-8101G display the component impedance response either over a wide range of test frequency sweep or over a wide range of test voltage sweep in a graph chart. This gives an analysis result of either impedance vs. frequency or impedance vs. applied voltage all at a glance. GPIB and RS-232C interfaces are available as standard for instrument control andtest result display on the PC. The rich features of LCR-8000G Series easily make your measurement tasks done at a very competitive price. The Sarter Way to Characterize Component Friendly Intuitive User InterfaceThe LCR-8000G Series is designed to perform precision impedance measurements over a wide frequency range of 20Hz~10MHz for LCR-8110G, 20Hz~5MHz for LCR-8105G and 20Hz~1MHz for LCR-8101G.The instrument is capable of measuring 11 different parameters with0.1% basic accuracy, which meets the precision measurement requirements of components and modules used in the RF circuits. The large LCD display with single-layer operation menu of LCR-8000GSeries providesusers with ultimate convenience to plug and play without much learning time. Pass/Fail Function with Judgment AlarmIn the Pass/Fail test, primary parameter measurement result is compared with user-defined limits and the pass or fail result is then displayed. Three methods, including absolute limit, percentage and delta limit, are available for Hi(high) and Lo(low) limit setting based on the nominal test value. The Pass/Fail test checks whether the parameter measurement result sits within the limits, then display "PASS" for within the limits, or "LO"for lower than the low limit, or "HI" for higher than the high limit. A scale and bar for displaying measurement result is shown at the center of the screen to give a graphical identification, which greatly reduces operator‘s load in a long time inspection work. This scale and bar also facilitate the adjustment of the variable components. Either Pass or Fail result can be set with a buzzer alarm, which makes component or material sorting easy with sound identification. Multi Step Mode The Multi-Step mode is capable of running a series of measurements of a component at a number of user-defined steps in sequence automatically. Total 64 programs can be saved into the non-volatile memory, and each program contains up to 30 test steps. The parameter and Hi/Lo limits can be set respectively for each test step. After a program being properly edited, the instrument can run through all the measurement steps either at a press of the button underthe Manual Trigger selection, or automatically run the program by detecting the connection of a DUT under the Auto Trigger selection. When all the test steps are completed, the screen shows the measurement reading of the parameter being selected for each step with Pass, HI, or LO measurement result. Graph ModeThe graph function shows the component characteristics in visual manner. Either voltage sweep or frequency sweep can be selected for horizontal scale. Just select the parameter, and set the start/stop voltage or the start/stop frequency of the sweep, LCR-8000G will run through the sequence of measurements and show the results on a graph. This graphical parameter measurement performs the characteristic verification of components and materials over the responseto the changes in AC test frequency or AC test voltage without the need of complex programming of an external controller. When the graph gets out of the vertical range, the LCR-8000G Series can automatically adjust the scale to get full test information. On the graph the marker operation is available for detailed observation.

자세히 보기

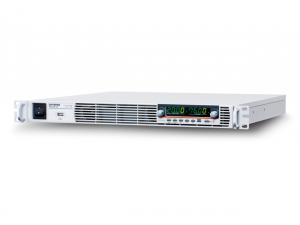

PSU 시리즈

카테고리: /

 주요 특징? Voltage output : 6V / 12.5V / 20V / 40V / 60V/ 100V/ 150V/ 300V/ 400V/ 600V? Power output：1200W ~ 1560W? C.V/ C.C priority mode? Adjustable voltage/current rise and fall time? 1U height and 19”Rack Mount Size? Bleeder Control function? Internal Resistance function? Protection: OVP, OCP, OHP,UVL, AC Fail, FAN Fail? Standard: USB, LAN, RS-232, RS-485, analog control? Option: GPIB、isolated analog interface (voltage control/ current control) GW Instek PSU-HV series has five models, including PSU 100-15, PSU 150-10, PSU 300-5, PSU 400-3.8, and PSU 600-2.6. The launch of PSU-HV is to complete the existing PSU series so as to satisfy high voltage application demands, allowing the augmented PSU series to cover a voltage range from 6V to 600V. PSU-HV inherits the functional design and maintains the high power density characteristic and 1U height appearance of the PSU-LV series (PSU 6-200, PSU 12.5-120,PSU 20-76, PSU 40-38和PSU 60-25). Furthermore, the original maximum output voltage of 60V is expanded to the maximum voltage of 600V and the maximum power of 1560 watts. The launch of the PSU-HV series augments the existing PSU series to fully satisfy the extensive voltage demands of 1U power supply market and provides system integrators with more flexibilities and selections to conduct system integration. The introduction of the PSU-HV series has perfected the PSU product line, which satisfies the applicationrequirements ranging from low voltage and large current to high voltage. Utilizing same model units of the PSU series to conduct series and parallel connections can increase total output power, total current or total voltage. The wide voltage and current output ranges of the PSU series can fully satisfy various voltage and current measurement requirements. The PSU series is a single power output DC programmable power supply, which outputs 1200W to 1560W. The PSU series provides maximum 2 units in series connection (models under300V) to achieve maximum 600V or 4 units in parallel connection to obtain maximum800Aand the maximum output power of 6.24 kilowatts.  The PSU series allows settings for CC priority or CV priority. Under CC or CV mode, users can adjust slew rate for output voltage or current based upon test requirements. There are two kinds of slew rate settings: high speed priority and slew rate priority.  High speed priority sets slew rate at the maximum speed to reach CC or CV mode. Slew rate priority allows users to set slew rate for CC or CV mode in order to control rise or fall slew rate.Slew rate priority mode is ideal for motor tests by adjusting the rise time of output voltage to protect DUT from being damaged by inrush current occurred at turn-on. Comparing with other 1U power supplies available in the market, PSU supports a most complete array of interfaces, including USB, LAN, RS-232, RS-485, analog control interface, GPIB (option), isolated analog interface (voltage control), and isolated analog interface (current control). Via the multi-drop mode, PSU will not need any switch/hub and GPIB cable for remote control and slave unit augmentation when using LAN, USB or GPIB. This feature can helpusers save costs on augmentation equipment for connecting slave while using LAN or USB. The new PSU-HV series is ideal for the primary input of DC/DC converter and servomotor production application. PSU is often integrated into component test systems such as aging test equipment for capacitors; 600V DC bias applications; aging test equipment for diode; semiconductor production equipment; automotive electronics; and ECU for V8 engine or V12 engine, etc. The PSU series provides users with flexible settings of High/Low Level or  Trigger input /Trigger output signals with pulse width of 1 ~ 60ms. Trigger input controls PSU to output or upload preset voltage, current and memory parameters. While outputting or uploading preset voltage, current and memory parameters PSU can produce corresponding Trigger output signals.

자세히 보기

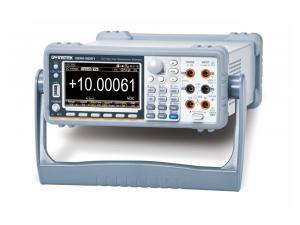

GDM-906x 시리즈

카테고리: /

 주요 특징? 6 1/2 Digit Display:1,200,000 Counts? 4.3 TFT Craphic LCD? DCV Basic Accuracy:0.0035%(GDM-9061)/0.0075%(GDM-9060)? 12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance? Sampling Rate up to 10k SPS (GDM-9061)? Dual Measurement Function to Providing Two Selected Measurement Simultaneously? Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend? Temperature Measurement Support RTD, Thermistor as Well as Thermocouple? Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O? Optional Interface: GPIB GW Instek launches GDM-906X series 6 ½ digit dual measurement multimeter (2 models: GDM-9061 and GDM-9060), featuring high precision DC voltage accuracy, fast sampling rate, 12 measurement functions (DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity beeper, temperature, capacitance), 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces(USBdevice/host,RS-232C,LAN,digitalI/Oand optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy. Ideal benchtop partner The GDM-906X series provides all fundamental measurement functions engineers require to design, develop, and test electronic circuits or products, including voltage, current, resistance, diode, and continuity beeper, frequency, temperature and capacitance. In addition, the series also features mathematical functions (dB, dBm, Compare, MX+B, 1/X and Percent), statistical functions (Min/Max/Average/P-P/STDEV), and a variety of standard communications interfaces.Theseries can meet specific measurementrequirementsandcomplexmeasurementapplicationswhether for the benchtop operation or to be installed in the system.  Diverse display mode In addition to the standard numeric display mode, it also provides a variety of graphical functions such as bar meter, trend chart and histogram, so that the measurement results are no longer just a series of numbers, but a swift insight into the panoramic measurement.      Dual measurements and dual trend lines IThe dual measurement function has always been a unique feature of GW Instek digital multimeters, allowing two measurement functions to be performed simultaneously and displaying the test results separately so as to greatly improve the test speed of the multi-functional measurement tasks.    High measurement resolution and high sampling rate The GDM-906X series provides high resolution of 0.1μV for voltage measurement, 100pA for current measurement, and 100μΩ for resistance measurement to meet the necessary requirements for precision measurement in specific applications. In addition, GDM-9061 is capable of achieving 10k readings per second with a display resolution of 4½ digits, while GDM-9060 achieves 1k measurement readings per second with a display resolution of 5½ digits;such a fastsampling rate is sufficientforcurrent measurementneeds.  Temperature measurement The GDM-906X series conducts temperature measurement and is ideal for a variety of temperature sensors, such as thermistors, RTDs, and thermocouples. The GDM-906X‘s temperature measurement supports commonly used thermocouple types (e.g. J / T / K..., etc.), using voltage measurement terminals as thermocouple inputs, and calculating temperature based on voltage fluctuations; the function can be used as a temperature recorder if collocated with internalmemory capacityand the trend chart function.  Diverse communications interface and fast transfer rate For system integration applications, the GDM-906X series is equipped with RS232, USB and LAN as standard communications interfaces, and GPIB is an option (can be installed by customer) to meet the requirements of different system integrations. Data transfer rate is up to 10k readings per second (GDM-9061) or 1k readings per second (GDM-9060) via USB/LAN/GPIB interfaces.  Convenient PC software FThe PC software DMM-Viewer2 is suitable for any computer communications interfaces (RS232C/LAN/USB/GPIB) provided by the GDM-906X series for long-term data acquisition. The software not only allows users to control the settings of the GDM-906X series but also provides the observation mode or the recording mode for the captured data. For the observation mode, the measurement result is directly presented as the result of the trend chart or the histogramand the resultis not saved. For the recordingmode, themeasurement result is directly saved into the log file, but only the current display is shown in the process. The measured data and trend chart can be viewed after the recording mode is stopped. In addition, the GDM-906X series also provides LabVIEW driver to meet the software application requirements of system integration.

자세히 보기
