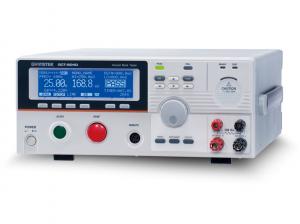

GCT-9040

카테고리: /

주요 특징? AC 40A Ground Bond Tester? Measuring Resistance from 1mΩ~650mΩ? Connect with the GPT-9800/9900 series to become a multifunctional test or simultaneous test system? 240x64 Ice Blue Dot Matrix LCD? Function Key for quick selecting? High intensity flash for Caution & Status indication? PWM switching amplifier to enhance the power efficiency and reliable testing? Max. 100 memory block for test condition setting.? Remote terminal on the front panel for “start” and “stop” remote activeI? nterface : USB device, Signal I/O and GPIB (optional) GW Instek rolls out40AAC ground bond tester ─ GCT-9040 to augment the existing safety tester product line and to replace the legacy model GCT-630. GCT-9040 provides the maximum AC test current of40Aand adopts the PWM design the same as other models to ensure test efficiency and reliability. Furthermore, large LCD display, 100 memory blocks from setting criteria, and programmable communications interface together deliver users with higher readability andconvenience. In addition to the standalone ground bond test operation, GCT-9040, with40AAC ground bond test capability, can also externally connect with GW Instek safety testers such as GPT-9800/9900/9900Aseries to augment users’ product test requirements by the all-in-one test platform. For instance, GPT-9802 (AC/DC withstanding tester), via external connection, can be expanded to a safety tester system with three testing functionalities. Additionally, after the safety tester system has been assembled, not only the sequential test function for the original all-in-one models can be executed, but also the simultaneous output test can be conducted. The simultaneous output test allows two testers to simultaneously test DUT so as to shorten the overall test time. Whether the safety tester system executes sequential test or simultaneous output test, GCT-9040 will automatically obtain controlover two testers, including activation control, final status indication light, and pin signal output from Digital I/O etc. to avoid confusion caused by each tester’s indication light. Last but not least, GCT-9040, with respect to remote control and data retrieval, not only provides standard USB (optional GPIB) interface to control all functionalities but also controls connected safety testers (GPT-9800/9900/9900Aseries) via commands to read measurement results.

자세히 보기

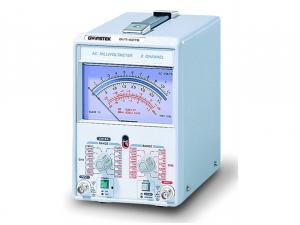

GVT-427B/417B

카테고리: /

 주요 특징? 300μV Full Scale Sensitivity? Measurement Frequency: 10Hz ~ 1MHz? Measurement Amplitude: -70dB ~ +40dB in 12 Ranges? Dual Channel (GVT-427B)? CE Approved (GVT-417B) AC Millivolt MeterThe GVT-427B is compact analog AC millivoltmeters ideal for low level voltage measurements beyond ordinary multimeter capabilities; 300uV sensitivity is maintained over 100V full scale. GVT-427 provides dual channel measurement, simultaneously or separately. Voltage scale is separated into 12 ranges, instantly accessible by a large rotary selector. The wide measurement range(10Hz~1MHz) and voltage(-70dB~+40dB) provide ample headroom for most applications.

자세히 보기

40 GHz

카테고리: /

자세히 보기

디지털 통신 분석기(86100 DCA) 오실로스코프

카테고리: 범용계측기, 오실로스코프 /

A. 주요사양 광 대역폭 오실로스코프 스코프 모드 : 가장 정확한 파형 측정 결과 제공 Eye/마스크 모드 : 가장 빠르고 정확한 송수신기 인증 테스트 TDR/TDT 모드 : S-파라미터 기능으로 고정밀 임피던스 측정 지터 및 진폭 모드 : 신호 특성 분석 결과에 대한 포괄적인 분석 B. 86100D Mainframe Hardware Option Hardware Option Standard trigger 86100D-STR Enhanced trigger 86100D-ETR Internal Precision Timebase1 86100D-PTB GPIB card interface installed 86100D-GPI No GPIB card interface 86100D-GPN Removable hard drive 86100D-090 Internal hard drive 86100D-092 Software Option Software Option MATLAB - Basic Oscilloscope package 86100D-061 MATLAB - Standard Oscilloscope package 86100D-062 Enhanced Jitter analysis software 86100D-200 Advanced waveform analysis software 86100D-201 Enhanced impedance and S-parameter software 86100D-202 Amplitude analysis/RIN/Q-factor 86100D-300 PLL and Jitter Spectrum software 86100DU-400 Advanced EYE analysis software 86100DU-401 InfiniiSim-DCA software 86100D-SIM Productivity Package software 86100D-500 Misc Option Misc Option Module slot filler panel 86100D-AFP Rack mount flange kit 86100D-AX4 Rack mount flange kit with handles 86100D-AXE Commercial cal certificate with test data 86100D-UK6 C. 86100D Module Optical/electrical Module Hardware Option Description Model number 9 GHz optical channel; single-mode and multimode, amplified (750 to 1650 nm) 20 GHz electrical channel 86105C 155 Mb/s through 8.5 Gb/s (choose 4 filter rates from Options 86105C-110 through 86105C-195) 86105C-100 155 Mb/s 86105C-110 622 Mb/s (also covers 614 Mb/s) 86105C-120 1.063 Gb/s 86105C-130 1.244/1.250 Gb/s (also covers 1.229 Mb/s) 86105C-140 2.125 Gb/s 86105C-150 2.488/2.500 Gb/s (also covers 2.458 Gb/s) 86105C-160 2.666 Gb/s 86105C-170 3.125 Gb/s (also covers 3.072 Gb/s) 86105C-180 4.250 Gb/s 86105C-190 5.0 Gb/s 86105C-193 6.250 Gb/s (also covers 6.144 Gb/s) 86105C-195 8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096,11.317 Gb/s 86105C-200 Combination of rates available in 86105C-100 and 86105C-200 86105C-300 20 GHz optical channel; single-mode and multimode, (750-1650 nm); filters for 8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096, 11.317, 14.025 Gb/s; 35 GHz electrical channel 86105D Identical capability as 86105D, 14.025 Gb/s filter not included 86105D-100 Identical capability as 86105D, only filter provided is 14.025 Gb/s 86105D-200 System impulse response correction calibration 86105D-IRC 34 GHz optical channel, filters for 15, 25.78 , 27.95, 28.05 Gb/s (contact Keysight for additional 14.025 Gb/s filter)4. 50 GHz electrical channel 86105D-281 20 GHz multi-optical port plug-in module;single-mode and multimode (750-1650 nm); filters for 8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096, 11.317, 14.025 Gb/s 86115D Two optical channels with filters for all rates listed (8.5 to 14.025 Gb/s) 86115D-002 Identical capability as 86115D-002, 14.025 Gb/s filters not included 86115D-102 Identical capability as 86115D-002, only filters provided are 14.025 Gb/s 86115D-142 Two optical channels with filters for 15, 25.78, 27.95, 28.05 Gb/s (contact Keysight for 14.025 Gb/s filter) 86115D-282 Four optical ports with filters for all rates listed (8.5 to 14.025 Gb/s) mulitplexed to two opticalchannels through 2 integral 1X2 optical switches 86115D-004 Identical capability as 86115D-004, 14.025 Gb/s filters not included 86115D-104 Identical capability as 86115D-004, only filters provided are 14.025 Gb/s 86115D-144 System impulse response correction calibration 86115D-IRC 40 to 65 GHz optical / 80 GHz electrical samplingmodule, 1300 to 1620 nm 86116C System impulse response correction calibration 86116C-IRC3 40 to 65 GHz optical / 80 GHz electrical samplingmodule, 1300 to 1620 nm 86116C Software Option Software Option Description Model number MATLAB - Basic Oscilloscope package 86100D-061 MATLAB - Standard Oscilloscope package 86100D-062 Enhanced Jitter analysis software 86100D-200 Advanced waveform analysis software 86100D-201 Enhanced impedance and S-parameter software 86100D-202 Amplitude analysis/RIN/Q-factor 86100D-300 PLL and Jitter Spectrum software 86100DU-400 Advanced EYE analysis software 86100DU-401 InfiniiSim-DCA software 86100D-SIM Productivity Package software 86100D-500 TDR/TDT channel Module TDR/TDT channel Module Description Model number Differential TDR module with dual 18 GHz TDR/electrical channels N1055A-32F 35 GHz, 2 channel remote head, 2.92 mm, female N1055A-32M 35 GHz, 2 channel remote head, 2.92 mm, male N1055A-34F 35 GHz, 4 channel remote head, 2.92 mm, female N1055A-34M 50 GHz, 2 channel remote head, 1.85 mm, female N1055A-52F 50 GHz, 2 channel remote head, 1.85 mm, male N1055A-52M 50 GHz, 4 channel remote head, 1.85 mm, female N1055A-54F 50 GHz, 4 channel remote head, 1.85 mm, male N1055A-54M Precision timebase Module Precision timebase Module Description Model number Precision timebase reference module 86107A 2.5 and 10 GHz clock input capability 86107A-010 10 and 20 GHz clock input capability 86107A-020 10, 20 and 40 GHz clock input capability 86107A-040 Clock recovery Module Clock recovery Module Description Model number 50 Mb/s to 7.1 Gb/s Clock recovery module. This module is not compatible with the 86100A and 86100B DCA mainframes. If you want to upgrade older DCAs, contact Keysight Technologies and ask for current trade-in deals. 83496B Single-ended and differential electrical with integrated signal 83496B-100 taps Single Mode (1260-1360 nm and 1490-1600 nm) and multimode 83496B-101 (830-860 nm and 1260-1360 nm) optical. Integrated signal taps. Single-ended or differential electrical inputs (no signal taps) Increase operating range to 50 Mb/s to 14.2 Gb/s 83496B-200 Data rate 0.05 Gb/s to 14.2 Gb/s upgrade 83496BU-200 Shift operating range to 7.1 to 14.2 Gb/s 83496B-201 Shift operating range to 7.1 to 14.2 Gb/s upgrade 83496BU-201 Add tunable loop bandwidth “golden PLL” capability 83496B-300 Adjustable loop bandwidth upgrade 83496BU-300 External clock recovery solutions External clock recovery solutions Description Model number 50 Mb/s to 32 Gb/s electrical clock recovery instrument with 1:2 demultiplexer N4877A 50 Mb/s to 16 Gb/s operation N4877A-216 50 Mb/s to 32 Gb/s operation N4877A-232 Optical pickoff and electrical converter N1075A Multimode and single-mode to >16 Gb/s N1075A-M14 Single-mode to >32 Gb/s N1075A-S32 Bundle N4877A and N1075A for an optical clock recovery solution N1070A Precision waveform analyzer Module Precision waveform analyzer Module Description Model number Dual 32 GHz electrical channels, integrated clock recovery (50 Mb/s to 14.2 Gb/s) with integrated precision timebase 86108A-100 Two 3.5 mm phase trimmers for skew adjustment 86108A-001 Two precision 3.5 mm 18 inch cables 86108A-002 Auxiliary Clock Recovery Inpu 86108A-400 D. 제품 관련 자료 (매뉴얼) Infiniium DCA-86100 Oscilloscope 다운 (제품사양서) Infiniium DCA-86100 Oscilloscope 다운

자세히 보기

33600 시리즈 파형 발생기

카테고리: 범용계측기, 펑션, 임의 파형 발생기 /

A. 주요사양 - 5배 더 낮은 고조파 왜곡의 사인파로 신호 순도 향상- 1ps 지터의 최대 80MHz 펄스로 타이밍 정확성 향상- 1mVpp ~ 10Vpp 진폭의 14비트 분해능으로 진폭 정확도 향상- USB, LAN(LXI-Core)와 GPIB(옵션)를 제공하여 PC또는 네트워크에 대한 신속하고 간편한 연결 지원 제품 33611A 33612A 33621A 33622A 채널 수 1 2 1 2 주파수 1 μHz ~ 80 MHz 1 μHz ~ 120 MHz 표준 파형 정현, 사각, 램프, 펄스, 삼각, 가우시안 노이즈, PRBS, DC 임의 파형 시퀀싱을 지원하는 Trueform 임의 파형, 4 MSa/채널 메모리, 64 MSa/채널(옵션) 샘플링 속도, 분해능 660 MSa/s, 14비트 1 GSa/s, 14비트 변조 유형 AM, FM, PM, FSK, BPSK, PWM, 합산(반송파 + 변조) 버스트 카운트 또는 게이트됨 스위프 선형, 로그 및 주파수 리스트 총 고조파 왜곡 및 지터 0.03% THD 미만 및 1 ps 지터 미만 타임베이스 TCXO 기본, 높은 안정성을 위한 OCXO 옵션 옵션 및 보안 OCXO 안정성이 높은 타임베이스, IQ 베이스밴드 신호 재생기, NISPOM 및 파일 보안 연결 USB, LAN, GPIB(옵션) B. 제품 관련 자료 (제품사양서) 33600A 33600A Series Trueform Waveform Generators 다운

자세히 보기

L4532A, L4534A LXI 디지타이저

카테고리: 범용계측기, 디지털 멀티미터(DMM) /

A. 주요사양 - 20MSa/s- 16비트 ADC 동시 샘플링- ± 250mV ~ ±250V 절연 입력- AC 또는 DC 커플링- 표준 32MS/ch 또는 확장된 128MS/ch 메모리 L4532A(2-ch) or 4534A(4-ch) digitizers with ADCs per channel Max sample rate  20 MSa/s Sample resolution  16 Bits Input coniguration  Isolated inputs (each channel independently isolated) Isolation voltage (low to chassis) ±40 V Maximum input (Hi to Low) ±250 Vpk Maximum input range ±256 V Input impedance 1 MΩ in parallel with 40 pF Input coupling DC or AC AC cutoff freq (-3 dB) < 10 Hz Input ranges: ±256 V, ±128 V, ±64 V, ±32 V, ±16 V, ±8 V, ±4 V, ±2 V, ±1 V, ±500 mV, ±250 mV Over voltage protection Yes Maximum overvoltage transient ±400 Vpk Analog bandwidth (-3 dB)  20 MHz typical Noise iltering (2-pole Bessel) 200 KHz, 2 MHz typical B. 제품 관련 자료 (매뉴얼) L4532A, L4534A High-Resolution LXI Digitizers 다운 (제품사양서) L4532A, L4534A High-Resolution LXI Digitizers 다운

자세히 보기

노이즈 소스

카테고리: 범용계측기, LCR Meter 및 Impedance 분석기 /

A. 주요사양 - 키사이트 346, 347 및 SNS 시리즈 노이즈 소스는 NFA 시리즈 노이즈 피겨 분석기와 함께 작동하여 10MHz ~ 50GHz 범위에서 노이즈 피겨를 측정합니다. 346 Noiser Source Family 제품 주파수 범위 ENR Excess Noise Ratio) - 일반 ENR 자동 다운로드 온도 보정 작업 도구 346A 10 MHz to 18 GHz 5 dB 없음 없음 NFA,ESA-E 시리즈 및 PSA 346C 10 MHz to 26.5 GHz 15 dB 없음 없음 NFA, ESA-E 시리즈 및 PSA 346B 10 MHz to 18 GHz 15 dB 없음 없음 NFA, ESA-E 시리즈 및 PSA 346CK01 1 GHz to 50 GHz 21 dB 없음 없음 NFA, ESA-E Series, PNA-X, PSA-Series, X-Series (PXA, MXA, EXA, CXA) 347 Noiser Source Family 제품 주파수 범위 ENR Excess Noise Ratio) - 일반 ENR 자동 다운로드 온도 보정 작업 도구 R347B 26.5 GHz to 40 GHz 10 to 13 dB 없음 없음 NFA, X-Series (PXA, MXA) Q347B 33 GHz to 50 GHz 6 to 13 dB 없음 없음 NFA, X-Series (PXA, MXA) SNS Noiser Source Family 제품 주파수 범위 ENR Excess Noise Ratio) - 일반 ENR 자동 다운로드 온도 보정 작업 도구 N4000A 10 MHz to 18 GHz 4.6 to 6.5 dB 있음 있음 NFA, ESA-E Series, X-Series (PXA, MXA, EXA, CXA) N4001A 10 MHz to 18 GHz 14 to 16 dB 있음 있음 NFA, ESA-E Series, X-Series (PXA, MXA, EXA, CXA) N4002A 10 MHz to 26.5 GHz 12 to 175 dB 있음 있음 NFA, ESA-E Series, X-Series (PXA, MXA, EXA, CXA)

자세히 보기

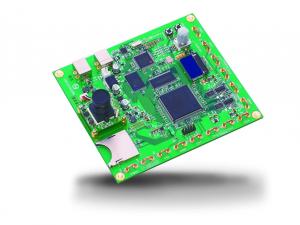

GDB-03

카테고리: /

 주요 특징? Application for GDS-3000 demo and oscilloscope training? 5Vdc Power Input (Support USB Power, interface Type B) The GDB-03 training kit allows you to learn both the basic and the advanced functions of the GDS-3000 Series Digital Storage Oscilloscope (DSO). Following the training procedures of this training kit, you will quickly understand the basic operations of a DSO, and the unique features of the GDS-3000 Series, which represents a typical hi-tech DSO today. The GDB-03 training kit is a signal generator board capable of producing waveforms, which contain various real-life scenarios you might encounter. With the GDB-03 training kit and the included curriculums, you are able to acquire adequate knowledge in using a DSO with advanced features.

자세히 보기

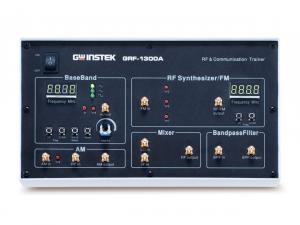

GRF-1300A

카테고리: /

 주요 특징? Baseband Signal : Sine, Triangle, Square wave? Frequency Range: 0.1 ~ 3MHz? RF Frequency : 870 ~ 920MHz? AM & FM Modulation? Mixer & 2.4GHz Bandpass Filter? 5 programmable On/Off Switches and 5 Test Points to Simulate 8 Failure Conditions for Trouble-Shooting Study? USB Interface to Provide Remote Control GRF-1300A, as an optional accessory of GSP-730, is a trainer for basic RF communications experiments. The brand new GRF-1300A RF training kit features not only all functions of GRF-1300 RF training kit but also augments itself with Mixer and Bandpass Filter. Users can better understand the characteristics of Mixer and Bandpass Filter by operating scalar network analyzer measurement which is produced by combining GSP-730 spectrum analyzer, GRF-1300A RF Communications Trainer, and USG signal generator. The combination of USG signal generator and GRF-1300A Mixer function can produce 2.4GHz AM and FM modulation signals. GRF-1300A Bandpass Filter can purify the output signals by filtering out harmonic and spurious produced by Mixer output signals.

자세히 보기

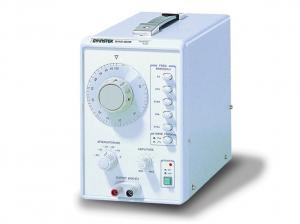

GAG-810/809

카테고리: /

 주요 특징? Frequency from 10Hz ~ 1MHz? 0.02% Low Sine Wave Distortion (GAG-810 Only)? 6 Steps Output Attenuator? EXT SYNC Function The GAG-809/810 provide a convenient solution for low frequency (< 1MHz) signal generation, specifically for audio bandwidth. Intuitive and simple panel interface provides quick frequency and amplitude adjustment, with dial/key shortcuts to different ranges. Square wave generation covers digital application in addition to the traditional analog using sine waves. Distortion is kept at minimum level, especially at the audible frequency range: 0.02% orless distortion factor for 500Hz~20kHz. The external synchronization signal input helps collaborate with other measurement devices.
