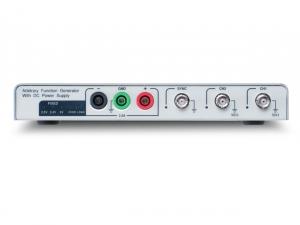

AFG-200/100 시리즈

카테고리: /

 주요 특징? Frequency range: 1uHz~25MHz? 1uHz frequency resolution? Built-in 120 MSa/s, 10 bit resolution and arbitrary waveform editing function with 4k point memory? Dual channel models support coupling, tracking, and phase functions? Square waveform can adjust the duty cycle from 1% to 99%.? Support various arbitrary waveform editing methods.? Built-in AM/FM/PM/FSK/SUM(AFG-225/225P) modulation, sweep and burst functions? USB interface signal control? AFG-125P/225P provide three DC power selections GW Instek launches the brand new AFG-100/200 series 25MHz USB modular arbitrary function generator with four models for selections. The AFG-100/200 series arbitrary function generator with many unique features such as light weight, handy, and USB interface compatible is an ideal choice for the applications at the general laboratories in applying stand-alone operation or collocation with the GDS-2000A series digital oscilloscope. AFG-225P Front PanelAFG-225P Rear Panel The main features of the AFG-100/200 series are output amplitude of 2.5Vpp (connecting with a load of 50 ohms), frequency range reaching 25MHz, frequency resolution of 1uHz, and built-in sine waveform, square waveform, triangle waveform, and noise signal. Square waveform can adjust the duty cycle from 1% to 99% and it can be utilized as pulse signal. Users, via the GDS-2000A FG APP, can select from the 66 built-in function waveforms to conduct arbitrarywaveform editing.The AFG-100/200 series, with functions of AM/FM/PM/FSK/SUM modulation, frequency sweep, burst and coupling, is suitable for various communications applications.The AFG-100/200 series collocates with the FG APP of GDS-2000A digital oscilloscope through USB interface. While conducting stand-alone operation, the AFG-100/200 series utilizes USB interface, which allows users to quickly set up their required tests by the simple connection feature. AWES (arbitrary waveform editing software) PC software is provided to enter settings speedily and easily for measurement. Users can select required waveforms from arbitrarywaveformeditor. 1. Stand-alone operation with PC software2. Collocation with the GDS-2000A series DSO operation **주의: AFG-125P 또는 AFG-225P제품은 PC에서 단독 사용시  외부 아답터 전원(GPA-501/502 option)이 필수입니다. (아래 표 참조)  AFG-125 AFG-225AFG-125PAFG-225P PC에서 단독 사용시GPA-501/502  OptionGTL-246 OptionGPA-501/502 OptionGTL-246 OptionGPA-501/502 OptionGTL-246 OptionGPA-501/502 OptionGTL-246 Option2000A 시리즈 디지털 스토리지 오실로스코프와 함께 사용시DS2-FH1 Option DS2-FH1 Option DS2-FH1 OptionGPA-501 Option

자세히 보기

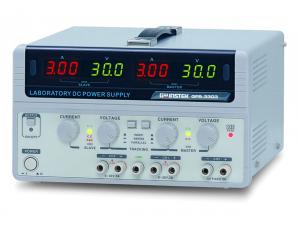

GPS-x303 시리즈

카테고리: /

 주요 특징? 4 Independent Isolated Output? Four "3 Digits" LED Displays? 0.01% Load and Line Regulation? Low Ripple and Noise? Tracking Operation and Auto Series/Parallel Operation? Output ON/OFF Switch? Output Voltage and Current Setting When Output Disable? Fan Speed Control Circuit to Minimize Fan Noise? Over Load and Reverse Polarity Protection? Optional European Jack Type Terminal The GPS-Series are 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation.The GPS-Series are an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.

자세히 보기

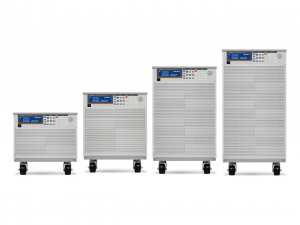

PEL-5000C

카테고리: /

 주요 특징? Maximum power up to 192kW? Up to 8 units of master/slave parallel control? 5-digit digital voltage, current and power meter? Large LCD Display? Display voltage value, current value, watt value at the same time? Suitable for power factor regulator (PFC) testing (600V, 1200V models)? Automatically perform OCP, OPP test? The power-on state value can be set? CC, CR, CV, CP, CC+CV, CP+CV, dynamic and short circuit modes? Short circuit time can be set during short circuit test? OCP, OPP, OTP & over voltage warning? Voltage polarity display can be set to positive value ("+") or negative value ("-")? Support solar panel MPPT test? Optional interface: GPIB, RS232, USB, LAN GW Instek PEL-5000C series single-channel electronic load provides 150V/ 600V/ 1200V models with a power range of 6kW~24kW. PEL-5000C has a total of 24 models featuring different combinations of power, voltage, and current. It can test and verify the specifications of batteries, electric vehicle chargers/charging stations, electric vehicle batteries and solar panels. PEL-5000C supports parallel connection for same voltage specification and different power models. PEL-5000C can support up to 8 units connected in parallel to provide a maximum power of 192kW.  For the scenario of battery testing, PEL-5000C specifically provides four battery discharge modes, namely CC+CV battery discharge test mode, CP+CV battery discharge test mode, CC+ UVP battery discharge test mode, and CP+ UVP battery discharge test mode. Users can choose a suitable test mode according to the test requirements. In addition to the four battery discharge modes, PEL-5000C also provides Time period discharge, Pulse discharge, and RAMP discharge modes. Users can set the discharge time, or discharge in the pulse current mode, or even set the rising/falling slew rate of the discharge current. These functions can be very flexible in the simulation of the battery discharge current waveform when an electric vehicle is running. In order to meet the verification requirements of different DUTs, PEL-5000C provides a variety of test functions, including inrush current test mode, solar panel MPPT test mode, automated OCP, OPP test functions and 150 sets of parameter storage function. The 1200V model of PEL-5000C not only provides full power output at 1000V, but also provides 60% power output at 1200V output, which is higher than the 50% power output of other manufacturers of similar electronic loads. High-voltage batteries or chargers directly connected to the electronic load may cause damage to the electronic load. PEL-5000C has a built-in slow starter, which not only protects the DC load, but also saves the user‘s installation cost and setting time for measurement.

자세히 보기

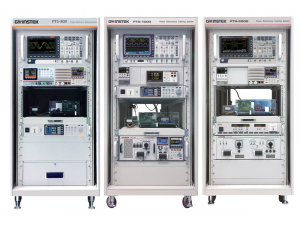

PTS 시리즈

카테고리: /

자세히 보기

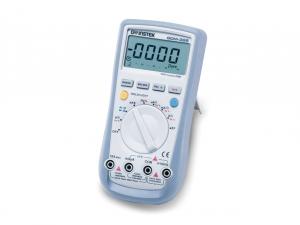

GDM-398

카테고리: /

 주요 특징? 디스플레이 : 3 ¾ 디지트 (4,000 카운트)? 자동/수동 범위 설정? 지원 기능? 커패시턴스/주파수 측정? hFE 테스트/EF 기능? Data Hold/REL 모드? Auto Power Off The GDM-300/400 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers. The GDM-300/400 series design is driven by mobile-oriented features, such as automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation. The basic functions matchthe depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer. SELECTIONGUIDENEWNEWNEWNEWMODELGDM-461GDM-452GDM-397GDM-360GDM-398GDM-357GDM-350BMax.Display220001999940006000400019991999AutoRanging√ √√√  AnalogBar√ √√√  TrueRMS√  √   DisplayBacklight  √√√  Fused 10A Range√√√√√ √AutoPower off √√√√√ DCVoltage1000V600V1000V1000V1000V600V250VACVoltage750V600V750V750V750V600V250VDCCurrent10A10A10A10A10A10A10AACCurrent10A10A10A10A10A10A Resistance220MΩ20MΩ40MΩ60MΩ40MΩ20MΩ20MΩCapacitance220mF20?F4000?F4000?F4000?F200?F Frequency220MHz20kHz10MHz10MHz10MHz  Diode√√√√√√√Continuity√√√√√√√Temperature  √  √√DutyCycle(%)√ √√√  Transistor(hFE)    √ √EFFunction    √  REL√ √√√  DataHold√√√√√√√PeakHold√      MAXMIN  √√√  RS232C√ √√

자세히 보기

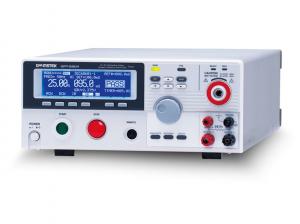

GPT-9900 시리즈

카테고리: /

 주요 특징? 500VA AC Test Capacity? 240x64 Ice Blue Dot matrix LCD? Sweep Function for DUT characteristic analysis? Insulation resistance measurement up to 50GΩ(GPT-9903/9904)? Manual/Auto Mode? Function Key for quick selection? High intensity flash for caution & Status indication? Safety INTERLOCK function? Zero Crossing Turn-on Operation? Controllable Ramp-up Time? True RMS Current Measurement? High resolution: 1uA for measuring current, 2V for setting voltage? PWM amplifier to enhance the power efficiency and reliable testing? Max. 100 memory block for test condition (step) setting. And each step can be named individually.? Remote terminal on the front panel for “start” and “stop” control? Rear panel output available? Interface : RS-232C, USB device, Signal I/O and GPIB (optional) A Solid Foundation for Reliable, Safe and Practical Safety Compliance TestingThe GPT-9900 series, with 500VA maximum output capacity, is a new safety tester (hi-pot tester/hipot tester). The family of four, including GPT-9904, GPT-9903A, GPT-9902A and GPT-9901A, come joining the GPT-9800 series, which carries 200VA output capacity, to serve the market with higher power demands for the safety tests of electronic products and components. The GPT-9000 series supports the major test items among all the needed for the compliance ofthe safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations. The GPT-9900 series is built upon a platform of AC 500VA maximum power output. The GPT-9904 is a 4-in-1 model capable of performing AC withstanding, DC withstanding, insulation resistance and ground bond tests, whereas the GPT-9903A is a 3-in-1 model capable of performing AC withstanding, DC withstanding and insulation resistance tests. The GPT-9902A is capable of performing both AC and DC withstanding tests whereas The GPT-9901A is able to only performAC withstanding tests.The GPT-9900 series safety tester follows every good feature and advantage of the GPT-9800 series. The high-efficiency PWM amplifier is the core of GPT-9900 platform design to impede the influence from the voltage fluctuation of input AC source. The output voltage is automatically cut off (within 150μs) upon the detection of an abnormal output voltage or a trip of current limits during test to protect the operator from hazardous injury. The GPT-9900 series automatically discharges the DUTafter each test to eliminate excessive voltage that remains on the DUT. Following a tidy and easy-to-use design concept, the GPT-9900 series is equipped with a simple & clear panel layout, a high resolution dot matrix LCD display, and color LED indicators, allowing operators to interpret measurement results easily and quickly. In the role as the complement of 200VA safety testers, the GPT-9900 series is designed upon a 500VA output platform to enhance all major test functions, including AC withstanding (AC 5kV/100mA),DC withstanding (DC 6kV/20mA), insulation resistance (DC 50V ~ 1000V/50GΩ max.) and ground bond (AC 32A max./650mΩ max.) tests, with high-power measurement capabilities. Further more, the test duration, ramp up time and upper/lower limits of the output voltage are fully-adjustable to accommodate a wide variety of safety tests with accurate measurement results. The “Sweep” function of the GPT-9900 series is able to display the test results point by point all through the testing period to form a trace graph.This graphic display performs the characteristic verification of a DUT through observing the parameter response to the changes of the applied voltage or current or testing time. On the graph a movable marker is available to get the parameter reading on the specific point of user’s interest. Other significant functions and features of the GPT-9900 series include the rear panel output for system applications, the open-circuit detection to ensure proper connections of apparatus for ground bond test, 100 sets of memory to save and recall the panel settings for individual or sequential tests, a remote output on-off terminal in the front panel and a signal I/O port in the rear panel provided as the means for remote start/stop control of the safetytester, and RS-232C, USB and GPIB (optional) interfaces available for PC remote control and test result logging.

자세히 보기

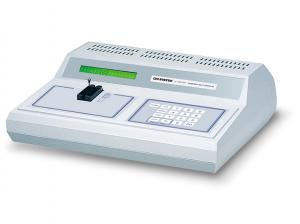

GUT-6000B

카테고리: /

 주요 특징? Loop Test? Auto-Search? Self-Diagnosis? Over-Load Protection? Measures 1800 Kinds of Device? 54/74 Series TTL? 4000 and 4500 Series CMOS? Test Socket: 28 Pin Bench-Top Digital IC Tester.The GUT-6000B is a desktop digital IC tester. Oriented toward automating testing tasks, the GUT-6000B contains high-end features such as auto-search and loop testing. Automated processes provide an intelligent and continuous process for detecting defective ICs. Self-diagnosis functions and over-load protection mechanisms make the GUT-6000A close to maintenance-free, releasing users from unnecessary hassles. The wide device coverage includes the 1800 seriesas well as the ubiquitous TTL and CMOS, providing a one-size fits-all solution for an IC testing bench area.

자세히 보기

Infiniium V-시리즈 오실로스코프

카테고리: 범용계측기, 오실로스코프 /

A. 주요사양 세계 최고의 실시간 오실로스코프 - 업계 최고의 고급 30GHz의 오실로스코프 프로빙 시스템- 2채널 샘플링 속도 80GSa/s / 4채널 샘플링 속도 40GSa/s- 업계에서 가장 깊은 최대 2Gpts 메모리(MSO 모델에서는 채널당 표준 50Mpts)- 최대 20GSa/s 타이밍 분해능의 업계 선도적인 16개 디지털 채널 업계에서 가장 광범위 어플리케이션별 측정 소프트웨어 - 가장 광범위한 지터, 트리거, 분석 및 프로토콜 툴(PrecisionProbe 지원)- 표준 위원회에 등록된 애질런트 엔지니어의 전문성에 기반을 둔 사전 제작 인증 테스트 소프트웨어(사용자 정의 어플리케이션 애드온 기능의 유연성 향상)- USB 3.1, PCI Express Gen 3, LPDDR4, HDMI 2.0, DisplayPort 1.2, 100G 이더넷, 10GBase-KR, MIPI, SAS 12G, SATA 6G 등의 새로운 기술 지원- 키사이트로부터 직접 구입할 수 있는 MATLAB? 소프트웨어로 맞춤형 측정 및 분석 루틴, 사용자 정의 필터 또는 계측기 어플리케이션 제작 가능 탁월한 측정 정확도를 보장할 수 있는 업계 최고의 신호 무결성 - 업계 최저의 노이즈 플로어(33GHz에서 2.10mVrms, 50mV/div일 때)- 최저 지터 측정 플로어(<100fs)- 5.5를 초과하는 가장 높은 ENOB(Effective Number Of Bit) 값- 50dBC를 초과하는 SFDR(Spurious Frequency Dynamic Range) DSO models (4Ch analog) DSA models (4Ch analog) MSO models (4Ch analog +16Ch Digital) 대역폭 최대 샘플링 속도 메모리 2 채널 4 채널 DSOV334A DSAV334A MSOV334A 33 GHz 16 GHz 80 GSa/s 2 Gpts(Option) 500 Mpts(Standard) 100 Mpts(DSAV model) DSOV254A DSAV254A MSOV254A 25 GHz 16 GHz 80 GSa/s DSOV204A DSAV204A MSOV204A 20 GHz 16 GHz 80 GSa/s DSOV164A DSAV164A MSOV164A 16 GHz 16 GHz 80 GSa/s DSOV134A DSAV134A MSOV134A 13 GHz 13 GHz 80 GSa/s DSOV084A DSAV084A MSOV084A 8 GHz 8 GHz 80 GSa/s B. 옵션&악세서리 Memory depth Option number on new oscilloscope Option number on new oscilloscope 50 Mpts/channel memory DSA models come standard with 100 Mpts/channel Standard 100 Mpts/channel memory upgrade5 DSOV000-100 200 Mpts/channel memory upgrade DSOV000-200 500 Mpts/channel memory upgrade DSOV000-500 1 Gpts/channel memory upgrade DSOV000-01G 2 Gpts/channel memory upgrade DSOV000-02G Option Description Option number on new oscilloscope Hardware serial trigger DSOV000-810 MSO with additional 16 digital channels Standard on MSO models 1 TB removable Solid State Drive (SSD) with Windows 7 DSOV000-801 GPIB card-interface DSOV000-805 Performance veriication and deskew ixture DSOV000-808 Rack mount kit N5470A ANSI Z540 compliant calibration DSOV000-A6J Calibration + uncertainties + guardbanding (accredited)s N2117A Stack mount kit option for stacking two frames DSOV000-AMG Probe Description Model number 30 GHz IniniiMax III probe ampliier N2803A 25 GHz IniniiMax III probe ampliier N2802A 20 GHz IniniiMax III probe ampliier N2801A 16 GHz IniniiMax III probe ampliier N2800A 20 GHz IniniiMax III probe ampliier N7000A 16 GHz IniniiMax III probe ampliier N7001A 13 GHz IniniiMax III probe ampliier N7002A 8 GHz IniniiMax III probe ampliier N7003A QuickTip probe head N2848A QuickTip probe tip N2849A 16 GHz solder-in probe head N5441A 26 GHz solder-in probe head N2836A ZIF probe head N5439A 450 Ω ZIF tip replacement N5440A 250 Ω ZIF tip replacement N5447A 25 GHz PC board ZIF tip N2838A Browser (hand held) probe head N5445A Browser tip replacement N5476A 3.5 mm/2.92 mm/SMA probe head2 N5444A 30 GHz voltage termination adapter N7010A Performance veriication and deskew fixture N5443A Precision BNC adapter (50 ohm) N5442A Sampling scope adapter N5477A 2.92 mm head lex cable N5448A High impedance probe adapter (includes one passive probe) N5449A MSO Probe & Accessories Description Model number Single-ended lying lead set E5382B Single-ended soft touch connectorless probe E5390A 1/2 size soft touch connectorless probe E5398A Differential soft touch probe E5387A Differential lying leads E5381A C. 제품 관련 자료 (매뉴얼) Infiniium V-Series Oscilloscopes 다운 (제품사양서) Infiniium V-Series Oscilloscopes 다운

자세히 보기

N8700시리즈 DC 전원 공급기

카테고리: 범용계측기, DC 전원 공급기, 분석기 /

A. 주요사양 - 3.2KW ~ 5.2KW 출력- 최대 600V 및 최대 400A- 내장형 전압 및 전류 측정기- LXI Class C호환- 유연한 AC 입력 전원 옵션으로 어디서나 편리하게 이용- 전면판 제어 및 향상된 프로그래밍 기능 모델 전력 (W) 최대 V (V) 최대 I (A) 출력 수 범위 수 리플 및 노이즈 프로그래밍 정확도 순간 응답 (ms) N8731A 3200 8 400 1 1 60 0.05+4 < 1 N8732A 3300 10 300 0.05+5 N8733A 3300 15 220 0.05+7.5 N8734A 3300 20 165 0.05+10 N8735A 3300 30 110 0.05+15 N8736A 3400 40 85 0.05+20 N8737A 3300 60 55 0.05+30 N8738A 3360 80 42 80 0.05+40 N8739A 3300 100 33 100 0.05+50 N8740A 3300 150 22 100 0.05+75 < 2 N8741A 3300 300 11 300 0.05+150 N8742A 3300 600 5.5 500 0.05+300 N8754A 5000 20 250 75 0.025+15 < 1 N8755A 5100 30 170 0.025+22.5 N8756A 5000 40 125 0.025+30 N8757A 5100 60 85 0.025+45 N8758A 5200 80 65 100 0.025+60 N8759A 5000 100 50 100 0.025+75 N8760A 5100 150 34 120 0.025+112.5 < 2 N8761A 5100 300 17 300 0.025+225 N8762A 5100 600 8.5 500 0.025+450 B. 제품 관련 자료 (매뉴얼) N8700 Series System DC Power Supply 다운 (제품사양서) N8700 Series System DC Power Supply 다운

자세히 보기

핸드형 디지털 멀티미터

카테고리: 범용계측기, 디지털 멀티미터(DMM) /

A. 주요사양 - 최대 50,000카운트와 0.025%의 기본 DCV 정확도, 정확한 True-RMS AC 측정 (U1250 시리즈)- 높은 명암비 OLED 디스플레이로 160° 시야각 제공 (U1273AX, U1273A, U1253B)- 인체공학적 디자인으로 다시 제작되었으며 IP 54 등급의 방수 및 방진 기능 (U1270 시리즈), -40°C의 낮은 온도에서도 작동 가능 (U1273AX)- CAT III 1,000 V 및 CAT IV 600 V 과전압 보호 (U1240, U1250, U1270 시리즈) 적용 분야 전기, HVAC 및 유틸리티 설치 및 유지보수 U1231A U1232A U1233A U1241B U1242B 카운트 6,000 10,000 AC 대역폭 1 kH 2 kH 전압 AC/DC 600 mV ~ 600 V 1 V ~ 1000 V 전류 AC/DC 해당 없음 60 μA ~ 10 A 1 mA ~ 10 A 배터리 수명 500시간 300시간 추가 기능 내장 플래시라이트, 백라이트 점멸로 연속성 알림, Zlow 스위치 카운터 Vsens를 이용한 비접촉 전압 검출 고조파비, 듀얼 및 차동 온도 측정 적용 분야 전기 문제해결 공업 U1251B U1252B U1253B U1271A U1272A U1273A/AX 카운트 50,000 30,000 AC 대역폭 30 kHz 100 kHz 20 kHz 100 kHz 전압 AC/DC 50 mV ~ 1000 V 300 mV ~ 1000 V 30 mV ~ 1000 V 전류 AC/DC 500 μA ~ 10 A 300 μA ~ 10 A 배터리 수명 72시간 36시간 8시간 300시간 30 ~ 60시간 추가 기능 해당 없음 20 MHz 주파수 카운터, 프로그래밍 가능 사각파 발생기 저역 통과 필터 높은 고도 등급(3000 m) OLED 디스플레이 AC 및/또는 DC 전압 체크 낮은 임피던스 모드, 오프셋 보상 낮은 임피던스 모드, 오프셋 보상 OLED 디스플레이 모델 U1241C U1242C U1281A U1282A 카운트 10,000 60,000 AC 대역폭 2 kHz 30 kHz 100 kHz 전압 AC/DC 100 mV ~ 1000 V 60 mV ~ 1000 V 전류 AC/DC 1000 μA ~ 10 A 600 μA ~ 10 A 배터리 수명 400시간 800시간 800시간 B. 옵션 & 악세서리 U1231A / U1232A / U1233A 옵션 &액세서리 Description number Soft carrying case U1174A Standard test lead kit U1168A IR-to-USB cable U1173A Magnetic hanging kit U1171A Thermocouple (K-Type) and Temperature Probe Adapter U1186A Temperature Module U1586B U1241B / U1242B / U1251B / U1252B / U1253B / U1271A / U1272A / U1273A/AX 옵션 &액세서리 Description Model number Extended test lead kit U1161A Alligator clips U1162A SMT grabbers U1163A Fine-tip test probes U1164A Standard test lead kit U1168A Test probe leads U1169A AC current clamp U1583B Thermocouple adapter+lead kit, J and K types U1180A Immersion temperature probe U1181A Industrial surface temperature probe U1182A Air temperature probe U1183A Temperature probe adapter U1184A J-type thermocouple and adapter U1185A K-type thermocouple and adapter U1186A Transit case (aluminium-clad) U1172A IR-to-USB Cable (U1251B/U1252B/U1253B/U1271A/U1272A/U1273A/AX) U1173A Soft carrying case U1174A Bluetooth Adapter (U1271A/U1272A/U1273A/AX) U1177A Magnetic hanging kit U1171A AC Adaptor (U1251B/U1252B/U1253B) U1170A Connectivity Bracke(U1241B/U1242B) U1179A 1R U1241C / U1242C 옵션 &액세서리 Description Model number Extended test lead kit U1161A Standard test lead kit U1168B Thermocouple adapter+lead kit, J and K types U1180A Immersion temperature probe U1181A Industrial surface temperature probe U1182A Air temperature probe U1183A Temperature probe adapter U1184A J-type thermocouple and adapter U1185A K-type thermocouple and adapter U1186A U1281A / U1282A 옵션 &액세서리 Description Model number Infrared(IR)-to-Bluetooth adapter U1117A Remote logging display U1115A Remote switch probe for U1280 Series U5404A Hard carrying case U1594A Rugged carrying case U1595A Extended test lead kit U1161A Standard test lead kit U1168B Temperature sensors and probes U1180A Immersion temperature probe U1181A Industrial surface temperature probe U1182A Air temperature probe U1183A Temperature probe adapter U1184A Thermocouple (J-type) and temperature probe adapter U1185A Thermocouple (K-type) and temperature probe adapter U1186A C. 제품 관련 자료 (매뉴얼) U1240 Series Handheld Digital Multimeters 다운 (매뉴얼) U1250 Series Handheld Digital Multimeters 다운 (제품사양서) U1240 Series Handheld Digital Multimeters 다운 (제품사양서) U1250 Series Handheld Digital Multimeters 다운 (제품사양서) U1270 Series Handheld Digital Multimeters 다운 (제품사양서) U1280 Series Handheld Digital Multimeters 다운

자세히 보기
