Installation and maintenance of power

distribution and supplies (U1210 Series)

Commercial or residential electrical

installation and maintenance (U1190 Series)

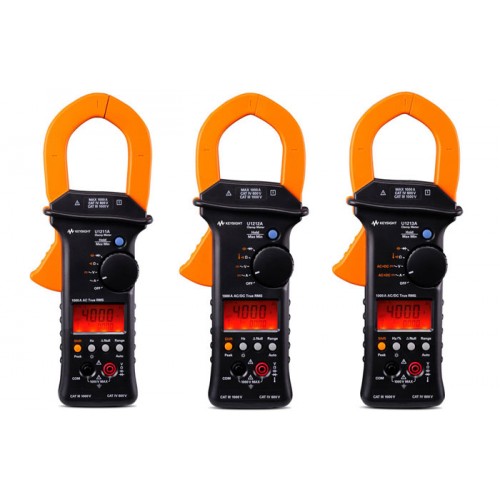

U1211A

U1212A

U1213A

U1191A

U1192A

U1193A

U1194A

Display

Display resolution (counts)

4,000

6,000

Dual display

Yes

No

Analog bar-graph

Yes

No

Back-light

Yes

Yes

Basic Features

AC bandwidth

400 Hz

2 kHz

500 Hz

RMS Method

True RMS AC

AC

AC + DC

Average responding

True RMS

Auto/manual ranging

Yes

Auto ranging only

Measurements

Voltage AC/DC: range

4 to 1000 V

600 V

60 to 600 V

Current AC/DC: range

ACI: 40 to 1000 A

40 to 1000 A

ACI: 400 A

ACI: 60 to 400 A

ACI: 60 μA to 600 A

DCI: 60 μA to 600 A

Resistance: range

400 Ω to 4 kΩ

400 Ω to 40 MΩ

600 Ω to 60 kΩ

Frequency: range

99.99 Hz to 999.9 kHz

N/A

99.99 Hz to 99.99 kHz

Capacitance: range

400 to 4000 μF

4 to 4000 μF

N/A

600 μF to 6 mF

Temperature: type, range

N/A

K: ?200 to 1372 °C

N/A

K: ?40 to 1200 °C

Continuity with beeper

Yes

Yes

Diode test

Yes

Yes

Data Management

Min/max recording

Yes

Yes

Display hold

Yes

Yes

Peak hold

Yes

N/A

Null

Yes

Yes

Connectivity

Bluetooth

N/A

General

Operating temperature

?10 to 50 °C, 0 to 80% RH

?10 to 50 °C, 0 to 80% RH

Measurement category

CAT III 1000 V / CAT IV 600 V

CAT III 600 V / CAT IV 300 V

Battery type (included)

9 V

1.5 V

Battery life

60 hours

200 hours

Dimensions (H x W x D)

273.0 x 106.0 x 43.0 mm

225.0 x 77.1 x 38.6 mm

Clamp opening

52 mm / 2 inches

31 mm

37 mm

Advanced functions

Auto power off

Wire separator,

Auto power off

 Wire separator, built-in lashlight,

Vsense, Auto power off
