RF신호발생기
X-시리즈 신호 발생기
- 10 MHz ~ 40 GHz 주파수 범위
- 파수, 진폭 및 위상의 250 ns 스위칭

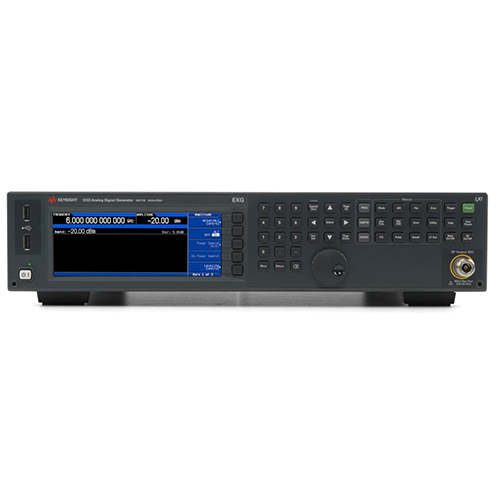

MXG, EXG 신호 발생기
- 9 kHz to 6 GHz 주파수 범위
- Industry-leading performance
| N5191A | N5193A | |
| 주파수 범위 | 10 MHz to 20 GHz or 40 GHz | |
| 위상 노이즈 | 10 GHz일 때 ?117 dBc, 20 kHz 오프셋 | 10 GHz일 때 ?126 dBc, 20 kHz 오프셋 |
| 비고조파 스퓨리어스 | 18 GHz일 때 ?70dBc | 18 GHz일 때 ?65 dBc |
| 출력 전력 | 기본: +10 dBm / 옵션: ?130 dBm ~ 10 dBm | |
| 주파수 스위칭 속도 | 370 ns 10 MHz to 6.89 GHz 100 us 6.89 GHz to 31.6 GHz 500 us 31.6 GHz to 40 GHz | List 모드에서 (주파수, 진폭, 위상) |
| List 업데이트 속도 | 180 ns 10 MHz to 6.89 GHz 100 us 6.89 GHz to 31.6 GHz 500 us 31.6 GHz to 40 GHz | 5 ns |
| 최소 펄스 폭 | 10 ns 10 MHz to 31.6 GHz 32 ns 31.6 GHz to 40 GHz | 1 ns |
| 펄스 상승/하강 시간 | 3 ns | |
| 펄스 on/off Ratio | 90 dB | 80 dB |
| 선형 첩(Chirp) 대역폭 | 10 to 25 percent of carrier frequency 10 MHz to 6.89 GHz up to 2.2 GHz 6.89 GHz to 31.6 GHz up to 550 MHz 31.6 GHz to 40 GHz | 반송 주파수의 10 ~ 25% |
| 호환성 모드 | Aeroflex | |
| 높이 | 3 랙 유닛 (3 U) | |
| Agile and Vector Signal Generators | Analog Signal Generators | ||
| Model number | N5182B | N5181B | N5183B |
| Frequency range (min. to max.) | 9 kHz to 6 GHz | 9 kHz to 6 GHz | 9 kHz to 40 GHz |
| Frequency switching (list mode) | 800 μs | 800 μs | 600 μs |
| Sweep mode | Step, list | list, step | list, step |
| Output power (minimum) | ?144 dBm | ?144 dBm | ?130 dBm |
| Output power (maximum; at 1 GHz) | +24 dBm | +24 dBm | +20 dBm (at 20 GHz) |
| Level accuracy (at 1 GHz) | ± 0.6 dB | ± 0.6 dB | ± 0.7 dB (at 10 GHz) |
| SSB phase noise (at 1 GHz; 20 kHz offset) | ?146 dBc/Hz | ?146 dBc/Hz | ?124 dBc/Hz (at 10 GHz) |
| Harmonics (at 1 GHz) | ?35 dBc | ?35 dBc | ?55 dBc (at 10 GHz) |
| Non-harmonics (at 1 GHz) | ?96 dBc | ?96 dBc | ?100 dBc |
| Agile and Vector Signal Generators | Analog Signal Generators | ||
| Model number | N5172B | N5171B | N5173B |
| Frequency range (min. to max.) | 9 kHz to 6 GHz | 9 kHz to 6 GHz | 9 kHz to 40 GHz |
| Frequency switching (list mode) | 800 μs | 800 μs | 600 μs |
| Sweep mode | Step, list | list, step | list, step |
| Output power (minimum) | ?144 dBm | ?144 dBm | ?130 dBm |
| Output power (maximum; at 1 GHz) | +21 dBm | +21 dBm | +20 dBm (at 20 GHz) |
| Level accuracy (at 1 GHz) | ± 0.6 dB | ± 0.6 dB | ± 0.7 dB (at 10 GHz) |
| SSB phase noise (at 1 GHz; 20 kHz offset) | ?122 dBc/Hz | ?122 dBc/Hz | ?101 dBc/Hz (at 10 GHz) |
| Harmonics (at 1 GHz) | ?35 dBc | ?35 dBc | ?55 dBc (at 10 GHz) |
| Non-harmonics (at 1 GHz) | ?72 dBc | ?72 dBc | ?72 dBc |
E. CXG 시리즈 제품
|
|
N5166B |
|
Frequency range |
9 kHz to 3/6 GHz |
|
Specified output power range |
-110 to +18 dBm |
|
Switching speed |
5 ms |
|
Phase noise (1 GHz, 20 kHz offset) |
-119 dBc/Hz typical |
|
Amplitude accuracy |
±0.6 dB |
|
Internal baseband RF bandwidth |
60 or 120 MHz |
|
External IQ inputs RF bandwidth |
200 MHz |
|
Baseband amplitude flatness |
±0.2 dB, measured with channel correction |
|
Baseband memory |
32 MSa(standard), 512 MSa optional |
|
External IQ RF BW |
200MHz |
| (제품사양서) EXG X-Series Signal Gernerator N5173B Microwave Analog | 다운 |
| (제품사양서) EXG X-Series Signal Gernerators N5171B Analog & N5172B Vector | 다운 |
| (제품사양서) MXG X-Series Signal Generator N5183B Microwave Analog | 다운 |
| (제품사양서) MXG X-Series Signal Generators N5181B Analog & N5182B Vector | 다운 |
| (제품사양서) N5191A UXG X-Series Agile Signal Generator, Modified Version | 다운 |
| (제품사양서) N5193A UXG Agile Signal Generator | 다운 |
(제품사양서) N5166B CXG RF Vector Signal Generator |
